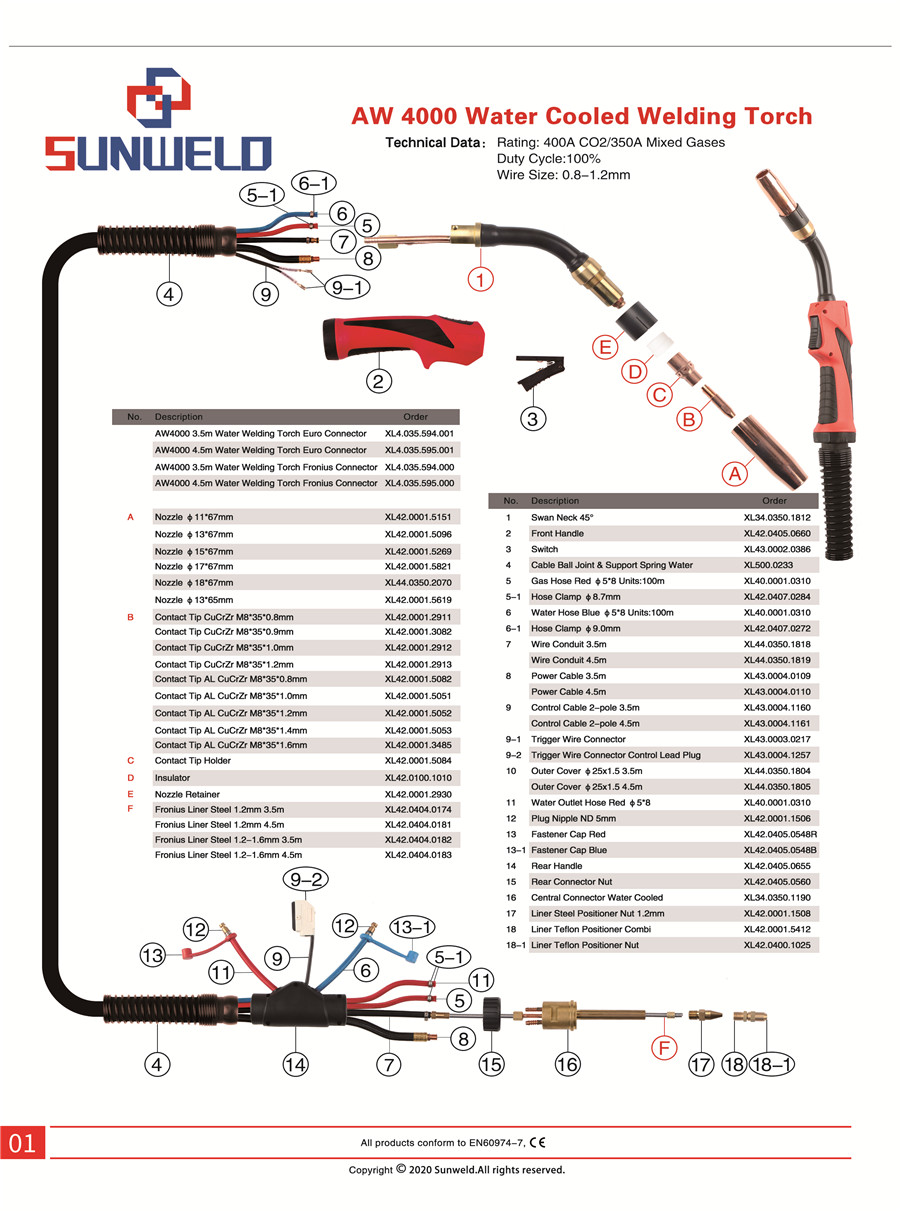

AW 4000 Water Cooled Welding Torch |
|
| Technical Data： |
Rating: 400A CO2/350A Mixed Gases |
|
|
Duty Cycle:100% |
|
|
Wire Size: 0.8-1.2mm |
|
| No. |
Description |
Order |
|
AW4000 3.5m Water Welding Torch Euro Connector |
XL4.035.594.001 |
|
AW4000 4.5m Water Welding Torch Euro Connector |
XL4.035.595.001 |
|
AW4000 3.5m Water Welding Torch Fronius Connector |
XL4.035.594.000 |
|
AW4000 4.5m Water Welding Torch Fronius Connector |
XL4.035.595.000 |
|
|
|
| A |
Nozzle φ11*67mm |
XL42.0001.5151 |
|
Nozzle φ13*67mm |
XL42.0001.5096 |
|
Nozzle φ15*67mm |
XL42.0001.5269 |
|
Nozzle φ17*67mm |
XL42.0001.5821 |
|
Nozzle φ18*67mm |
XL44.0350.2070 |
|
Nozzle φ13*65mm |
XL42.0001.5619 |
| B |
Contact Tip CuCrZr M8*35*0.8mm |
XL42.0001.2911 |
|
Contact Tip CuCrZr M8*35*0.9mm |
XL42.0001.3082 |
|
Contact Tip CuCrZr M8*35*1.0mm |
XL42.0001.2912 |
|
Contact Tip CuCrZr M8*35*1.2mm |
XL42.0001.2913 |
|
Contact Tip AL CuCrZr M8*35*0.8mm |
XL42.0001.5082 |
|
Contact Tip AL CuCrZr M8*35*1.0mm |
XL42.0001.5051 |
|
Contact Tip AL CuCrZr M8*35*1.2mm |
XL42.0001.5052 |
|
Contact Tip AL CuCrZr M8*35*1.4mm |
XL42.0001.5053 |
|
Contact Tip AL CuCrZr M8*35*1.6mm |
XL42.0001.3485 |
| C |
Contact Tip Holder |
XL42.0001.5084 |
| D |
Insulator |
XL42.0100.1010 |
| E |
Nozzle Retainer |
XL42.0001.2930 |
| F |
Fronius Liner Steel 1.2mm 3.5m |
XL42.0404.0174 |
|
Fronius Liner Steel 1.2mm 4.5m |
XL42.0404.0181 |
|
Fronius Liner Steel 1.2-1.6mm 3.5m |
XL42.0404.0182 |
|
Fronius Liner Steel 1.2-1.6mm 4.5m |
XL42.0404.0183 |
|
|
|
| No. |
Description |
Order |
| 1 |
Swan Neck 45° |
XL34.0350.1812 |
| 2 |
Front Handle |
XL42.0405.0660 |
| 3 |
Switch |
XL43.0002.0386 |
| 4 |
Cable Ball Joint & Support Spring Water |
XL500.0233 |
| 5 |
Gas Hose Red φ5*8 Units:100m |
XL40.0001.0310 |
| 5-1 |
Hose Clamp φ8.7mm |
XL42.0407.0284 |
| 6 |
Water Hose Blue φ5*8 Units:100m |
XL40.0001.0310 |
| 6-1 |
Hose Clamp φ9.0mm |
XL42.0407.0272 |
| 7 |
Wire Conduit 3.5m |
XL44.0350.1818 |
|
Wire Conduit 4.5m |
XL44.0350.1819 |
| 8 |
Power Cable 3.5m |
XL43.0004.0109 |
|
Power Cable 4.5m |
XL43.0004.0110 |
| 9 |
Control Cable 2-pole 3.5m |
XL43.0004.1160 |
|
Control Cable 2-pole 4.5m |
XL43.0004.1161 |
| 9-1 |
Trigger Wire Connector |
XL43.0003.0217 |
| 9-2 |
Trigger Wire Connector Control Lead Plug |
XL43.0004.1257 |
| 10 |
Outer Cover φ25×1.5 3.5m |
XL44.0350.1804 |
|
Outer Cover φ25×1.5 4.5m |
XL44.0350.1805 |
| 11 |
Water Outlet Hose Red φ5*8 |
XL40.0001.0310 |
| 12 |
Plug Nipple ND 5mm |
XL42.0001.1506 |
| 13 |
Fastener Cap Red |
XL42.0405.0548R |
| 13-1 |
Fastener Cap Blue |
XL42.0405.0548B |
| 14 |
Rear Handle |
XL42.0405.0655 |
| 15 |
Rear Connector Nut |
XL42.0405.0560 |
| 16 |
Central Connector Water Cooled |
XL34.0350.1190 |
| 17 |
Liner Steel Positioner Nut 1.2mm |
XL42.0001.1508 |
| 18 |
Liner Teflon Positioner Combi |
XL42.0001.5412 |
| 18-1 |
Liner Teflon Positioner Nut |
XL42.0400.1025 |
