MMT/PMT25 Air Cooled MIG GUN （XL6252513MMT XL6252514MMT XL6252513 XL6252514）

Short Description:

MMT/PMT25 Air Cooled MIG GUN
Technical Data： Rating: 250A Mixed Gases
Duty Cycle: 35 %
Wire Size: 0.6-1.2mm

MMT25 MIG GUN Air Cooled 3.0m XL6252513MMT
MMT25 MIG GUN Air Cooled 4.5m XL6252514MMT
PMT25 MIG GUN Air Cooled 3.0m XL6252513
PMT25 MIG GUN Air Cooled 4.5m XL6252514

Send email to us

Product Detail

Product Tags

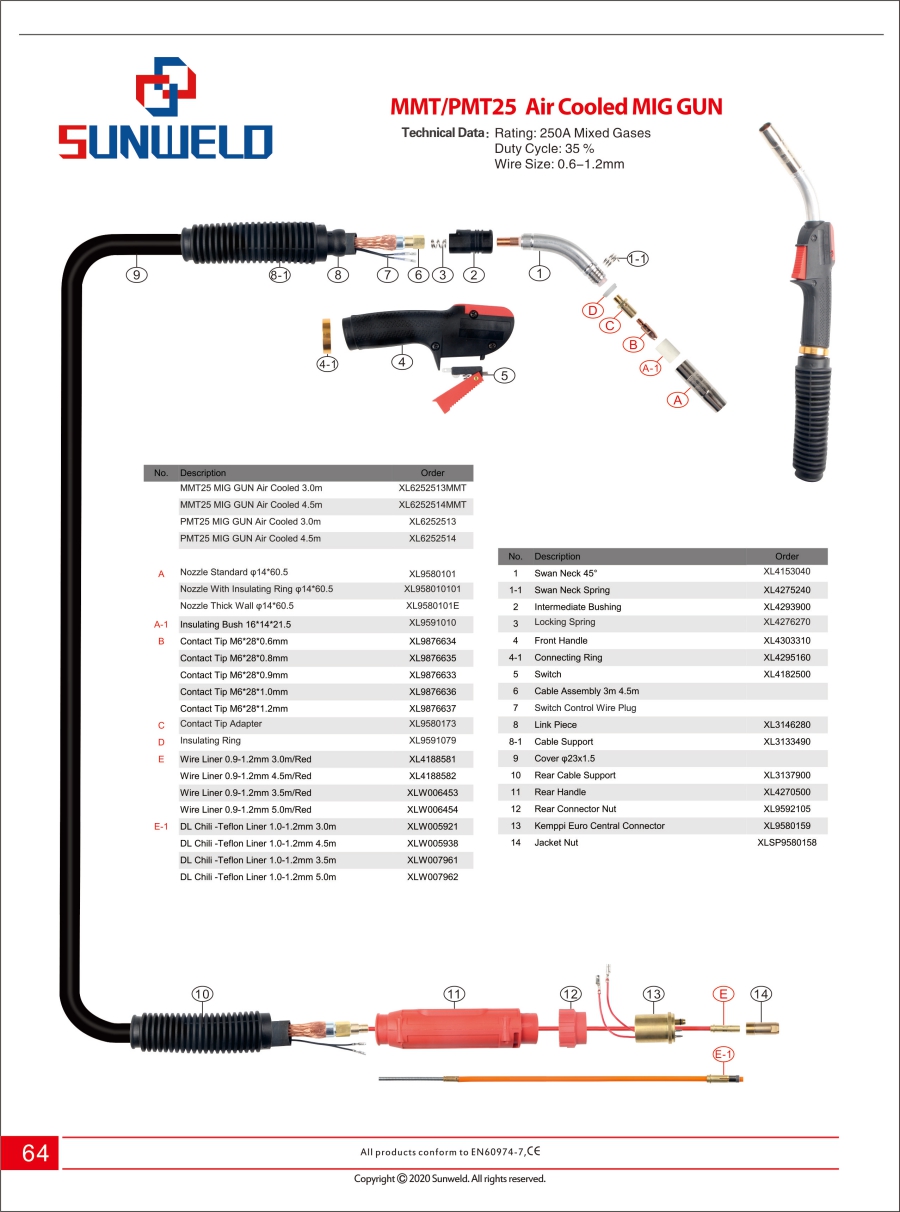

	MMT/PMT25 Air Cooled MIG GUN
Technical Data：	Rating: 250A Mixed Gases
	Duty Cycle: 35 %
	Wire Size: 0.6-1.2mm
No.	Description	Order
	MMT25 MIG GUN Air Cooled 3.0m	XL6252513MMT
	MMT25 MIG GUN Air Cooled 4.5m	XL6252514MMT
	PMT25 MIG GUN Air Cooled 3.0m	XL6252513
	PMT25 MIG GUN Air Cooled 4.5m	XL6252514

A	Nozzle Standard φ14*60.5	XL9580101
	Nozzle With Insulating Ring φ14*60.5	XL958010101
	Nozzle Thick Wall φ14*60.5	XL9580101E
A-1	Insulating Bush 161421.5	XL9591010
B	Contact Tip M6280.6mm	XL9876634
	Contact Tip M6280.8mm	XL9876635
	Contact Tip M6280.9mm	XL9876633
	Contact Tip M6281.0mm	XL9876636
	Contact Tip M6281.2mm	XL9876637
C	Contact Tip Adapter	XL9580173
D	Insulating Ring	XL9591079
E	Wire Liner 0.9-1.2mm 3.0m/Red	XL4188581
	Wire Liner 0.9-1.2mm 4.5m/Red	XL4188582
	Wire Liner 0.9-1.2mm 3.5m/Red	XLW006453
	Wire Liner 0.9-1.2mm 5.0m/Red	XLW006454
E-1	DL Chili -Teflon Liner 1.0-1.2mm 3.0m	XLW005921
	DL Chili -Teflon Liner 1.0-1.2mm 4.5m	XLW005938
	DL Chili -Teflon Liner 1.0-1.2mm 3.5m	XLW007961
	DL Chili -Teflon Liner 1.0-1.2mm 5.0m	XLW007962

No.	Description	Order
1	Swan Neck 45°	XL4153040
1-1	Swan Neck Spring	XL4275240
2	Intermediate Bushing	XL4293900
3	Locking Spring	XL4276270
4	Front Handle	XL4303310
4-1	Connecting Ring	XL4295160
5	Switch	XL4182500
6	Cable Assembly 3m 4.5m
7	Switch Control Wire Plug
8	Link Piece	XL3146280
8-1	Cable Support	XL3133490
9	Cover φ23×1.5
10	Rear Cable Support	XL3137900
11	Rear Handle	XL4270500
12	Rear Connector Nut	XL9592105
13	Kemppi Euro Central Connector	XL9580159
14	Jacket Nut	XLSP9580158
