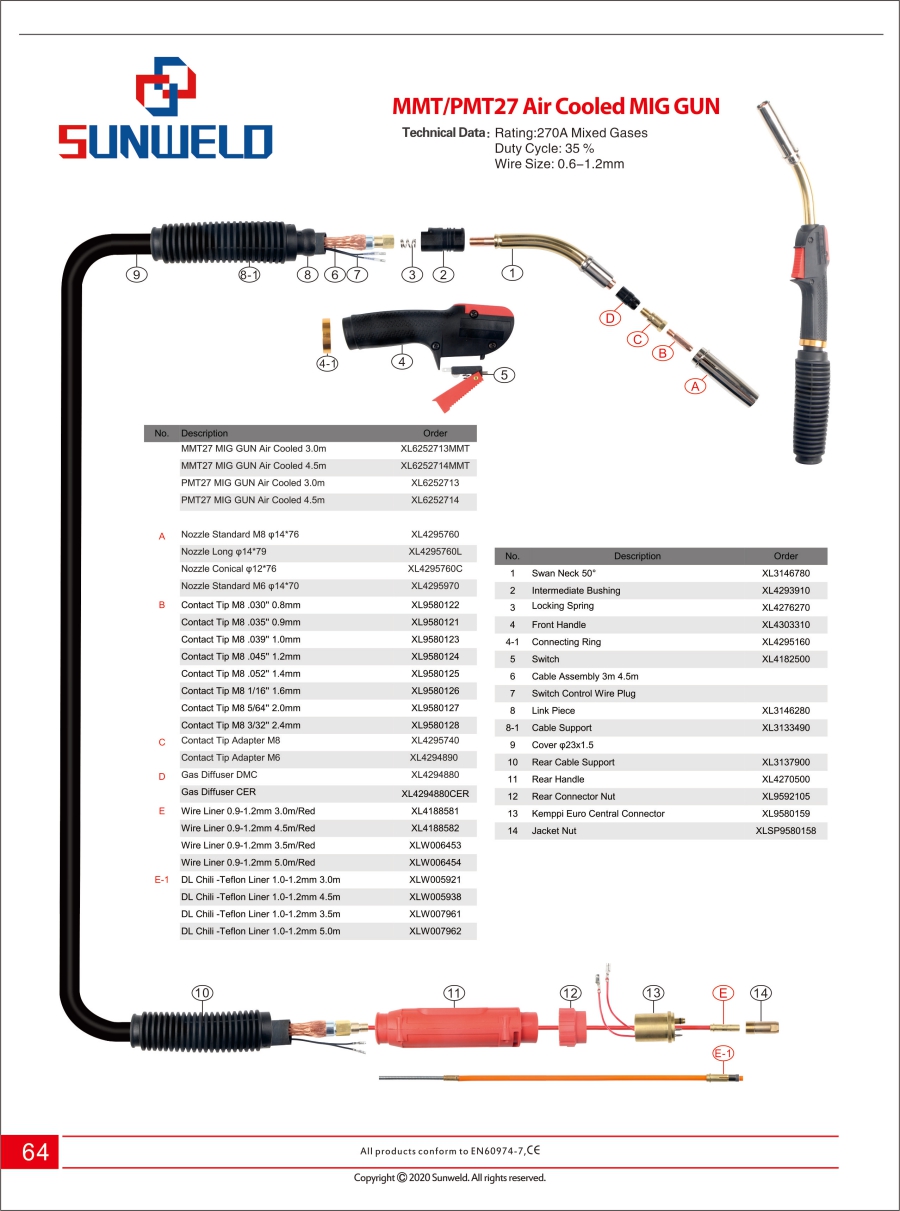

| MMT/PMT27 Air Cooled MIG GUN |
| Technical Data： |
Rating:270A Mixed Gases |
|
|
Duty Cycle: 35 % |
|
|
Wire Size: 0.6-1.2mm |
|
| No. |
Description |
Order |
|
MMT27 MIG GUN Air Cooled 3.0m |
XL6252713MMT |
|
MMT27 MIG GUN Air Cooled 4.5m |
XL6252714MMT |
|
PMT27 MIG GUN Air Cooled 3.0m |
XL6252713 |
|
PMT27 MIG GUN Air Cooled 4.5m |
XL6252714 |
|
|
|
| A |
Nozzle Standard M8 φ14*76 |
XL4295760 |
|
Nozzle Long φ14*79 |
XL4295760L |
|
Nozzle Conical φ12*76 |
XL4295760C |
|
Nozzle Standard M6 φ14*70 |
XL4295970 |
| B |
Contact Tip M8 .030” 0.8mm |
XL9580122 |
|
Contact Tip M8 .035” 0.9mm |
XL9580121 |
|
Contact Tip M8 .039” 1.0mm |
XL9580123 |
|
Contact Tip M8 .045” 1.2mm |
XL9580124 |
|
Contact Tip M8 .052” 1.4mm |
XL9580125 |
|
Contact Tip M8 1/16” 1.6mm |
XL9580126 |
|
Contact Tip M8 5/64” 2.0mm |
XL9580127 |
|
Contact Tip M8 3/32” 2.4mm |
XL9580128 |
| C |
Contact Tip Adapter M8 |
XL4295740 |
|
Contact Tip Adapter M6 |
XL4294890 |
| D |
Gas Diffuser DMC |
XL4294880 |
|
Gas Diffuser CER |
XL4294880CER |
| E |
Wire Liner 0.9-1.2mm 3.0m/Red |
XL4188581 |
|
Wire Liner 0.9-1.2mm 4.5m/Red |
XL4188582 |
|
Wire Liner 0.9-1.2mm 3.5m/Red |
XLW006453 |
|
Wire Liner 0.9-1.2mm 5.0m/Red |
XLW006454 |
| E-1 |
DL Chili -Teflon Liner 1.0-1.2mm 3.0m |
XLW005921 |
|
DL Chili -Teflon Liner 1.0-1.2mm 4.5m |
XLW005938 |
|
DL Chili -Teflon Liner 1.0-1.2mm 3.5m |
XLW007961 |
|
DL Chili -Teflon Liner 1.0-1.2mm 5.0m |
XLW007962 |
|
|
|
| No. |
Description |
Order |
| 1 |
Swan Neck 50° |
XL3146780 |
| 2 |
Intermediate Bushing |
XL4293910 |
| 3 |
Locking Spring |
XL4276270 |
| 4 |
Front Handle |
XL4303310 |
| 4-1 |
Connecting Ring |
XL4295160 |
| 5 |
Switch |
XL4182500 |
| 6 |
Cable Assembly 3m 4.5m |
|
| 7 |
Switch Control Wire Plug |
|
| 8 |
Link Piece |
XL3146280 |
| 8-1 |
Cable Support |
XL3133490 |
| 9 |
Cover φ23×1.5 |
|
| 10 |
Rear Cable Support |
XL3137900 |
| 11 |
Rear Handle |
XL4270500 |
| 12 |
Rear Connector Nut |
XL9592105 |
| 13 |
Kemppi Euro Central Connector |
XL9580159 |
| 14 |
Jacket Nut |
XLSP9580158 |
