PSF 305 Air Cooled Welding Torch(XL0458 401 880 XL0458 401 881)

PSF 305 Air Cooled Welding Torch(XL0458 401 880 XL0458 401 881)

Short Description:

PSF 305  Air Cooled Welding Torch
Technical Data： Rating:300A CO2/250A Mixed Gases
Duty Cycle: 60%
Wire Size:0.6-1.2mm
PSF305 3.0m Air Cooled Welding Torch XL0458 401 880
PSF305 4.5m Air Cooled Welding Torch XL0458 401 881


Product Detail

Product Tags

305

PSF 305  Air Cooled Welding Torch
Technical Data： Rating:300A CO2/250A Mixed Gases
Duty Cycle: 60%
Wire Size:0.6-1.2mm

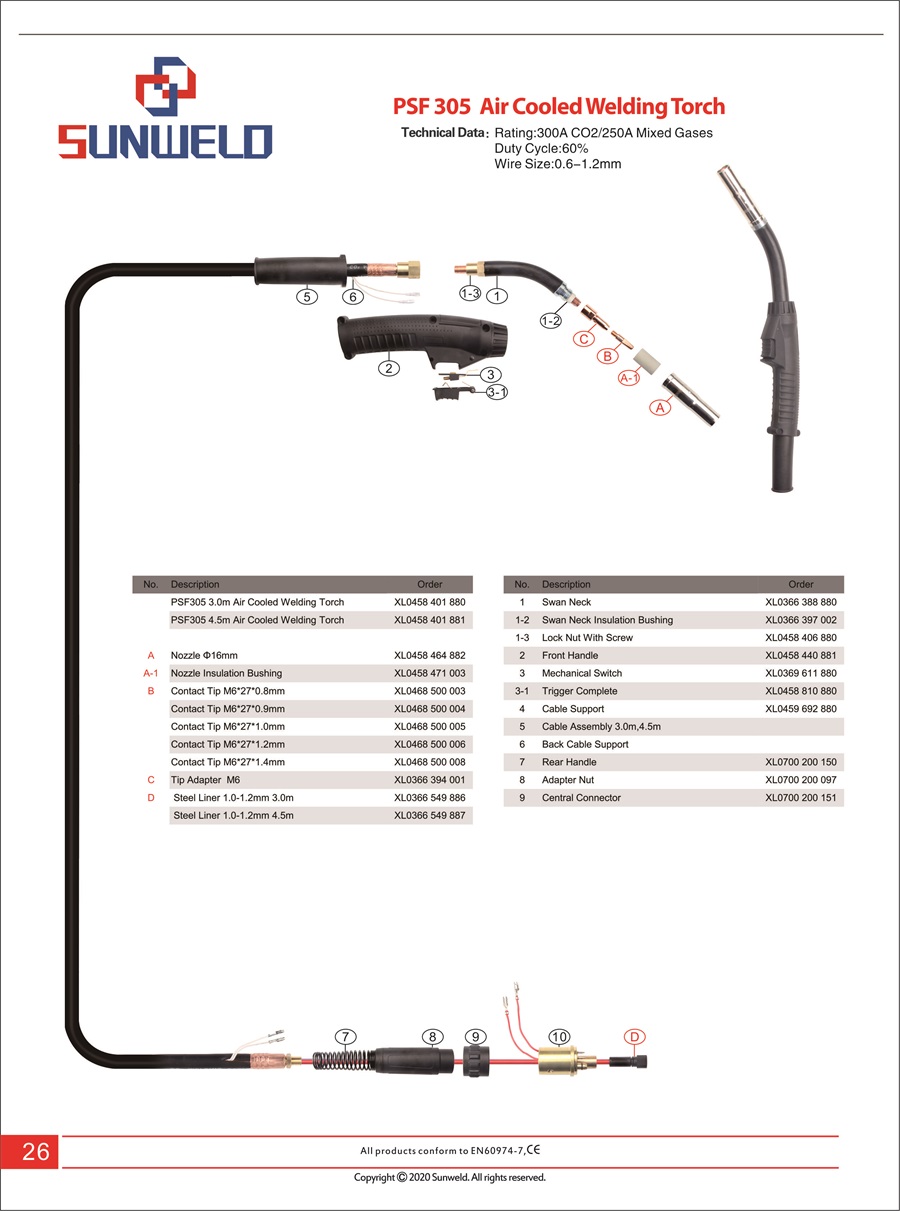

No. Description Order
PSF305 3.0m Air Cooled Welding Torch XL0458 401 880
PSF305 4.5m Air Cooled Welding Torch XL0458 401 881
A Nozzle Φ16mm XL0458 464 882
A-1 Nozzle Insulation Bushing XL0458 471 003
B Contact Tip M6*27*0.8mm XL0468 500 003
Contact Tip M6*27*0.9mm XL0468 500 004
Contact Tip M6*27*1.0mm XL0468 500 005
Contact Tip M6*27*1.2mm XL0468 500 006
Contact Tip M6*27*1.4mm XL0468 500 008
C Tip Adapter  M6 XL0366 394 001
D  Steel Liner 1.0-1.2mm 3.0m XL0366 549 886
 Steel Liner 1.0-1.2mm 4.5m XL0366 549 887
No. Description Order
1 Swan Neck XL0366 388 880
1-2 Swan Neck Insulation Bushing XL0366 397 002
1-3 Lock Nut With Screw XL0458 406 880
2 Front Handle XL0458 440 881
3 Mechanical Switch XL0369 611 880
3-1 Trigger Complete XL0458 810 880
4 Cable Support XL0459 692 880
5 Cable Assembly 3.0m,4.5m
6 Back Cable Support
7 Rear Handle XL0700 200 150
8 Adapter Nut XL0700 200 097
9 Central Connector XL0700 200 151
