PSF250 Air Cooled Welding Torch(XL0366 100 882 XL0366 100 883)

PSF250 Air Cooled Welding Torch(XL0366 100 882 XL0366 100 883)

Short Description:

PSF250 Air Cooled Welding Torch
Technical Data： Rating:250A CO2/200A Mixed Gases
Duty Cycle:60%
Wire Size:0.6-1.0mm
PSF250 3.0m Air Cooled Welding Torch XL0366 100 882
PSF250 4.5m Air Cooled Welding Torch XL0366 100 883


Product Detail

Product Tags

250

PSF250 Air Cooled Welding Torch
Technical Data： Rating:250A CO2/200A Mixed Gases
Duty Cycle:60%
Wire Size:0.6-1.0mm

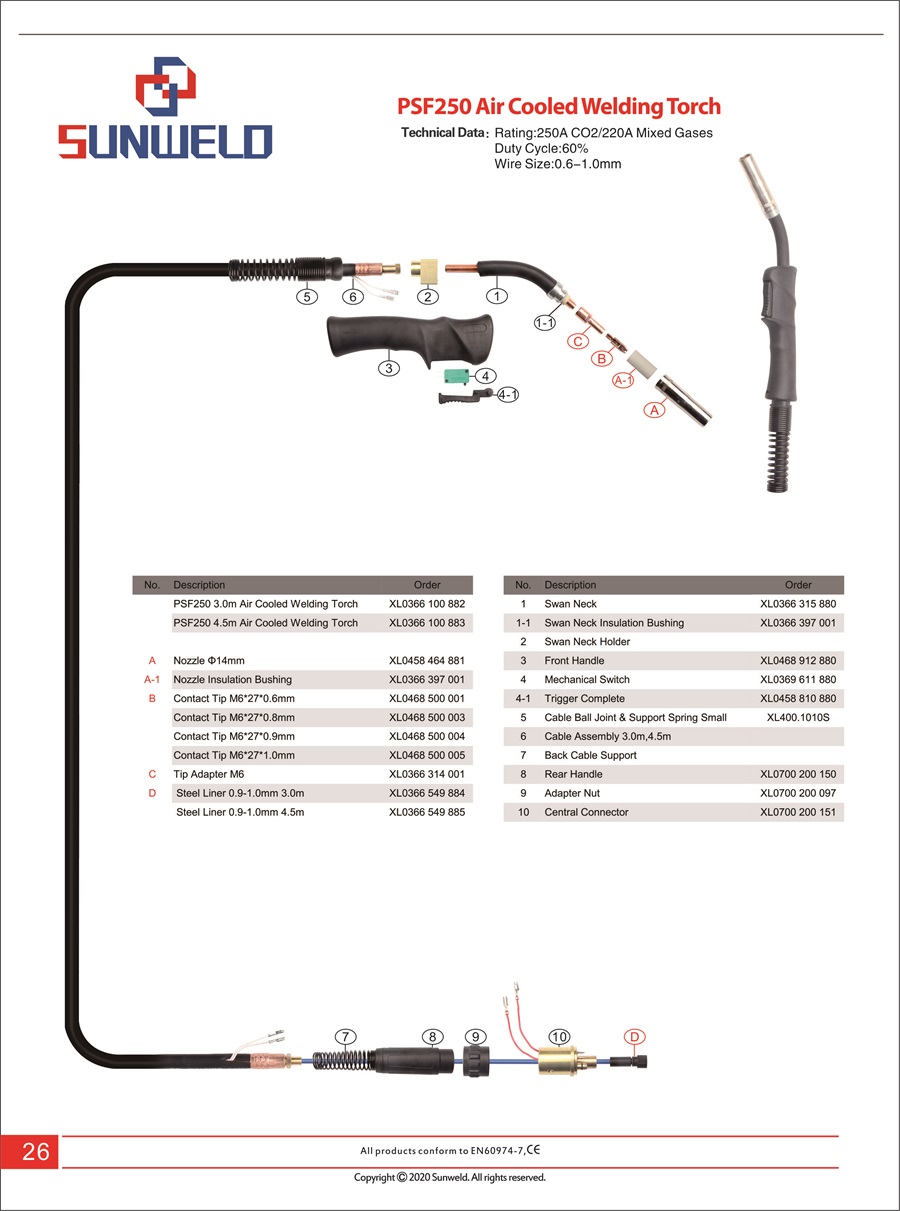

No. Description Order
PSF250 3.0m Air Cooled Welding Torch XL0366 100 882
PSF250 4.5m Air Cooled Welding Torch XL0366 100 883
A Nozzle Φ14mm XL0458 464 881
A-1 Nozzle Insulation Bushing XL0366 397 001
B Contact Tip M6*27*0.6mm XL0468 500 001
Contact Tip M6*27*0.8mm XL0468 500 003
Contact Tip M6*27*0.9mm XL0468 500 004
Contact Tip M6*27*1.0mm XL0468 500 005
C Tip Adapter M6 XL0366 314 001
D Steel Liner 0.9-1.0mm 3.0m XL0366 549 884
Steel Liner 0.9-1.0mm 4.5m XL0366 549 885
No. Description Order
1 Swan Neck XL0366 315 880
1-1 Swan Neck Insulation Bushing XL0366 397 001
2 Swan Neck Holder
3 Front Handle XL0468 912 880
4 Mechanical Switch XL0369 611 880
4-1 Trigger Complete XL0458 810 880
5 Cable Ball Joint & Support Spring Small XL400.1010S
6 Cable Assembly 3.0m,4.5m
7 Back Cable Support
8 Rear Handle XL0700 200 150
9 Adapter Nut XL0700 200 097
10 Central Connector XL0700 200 151
