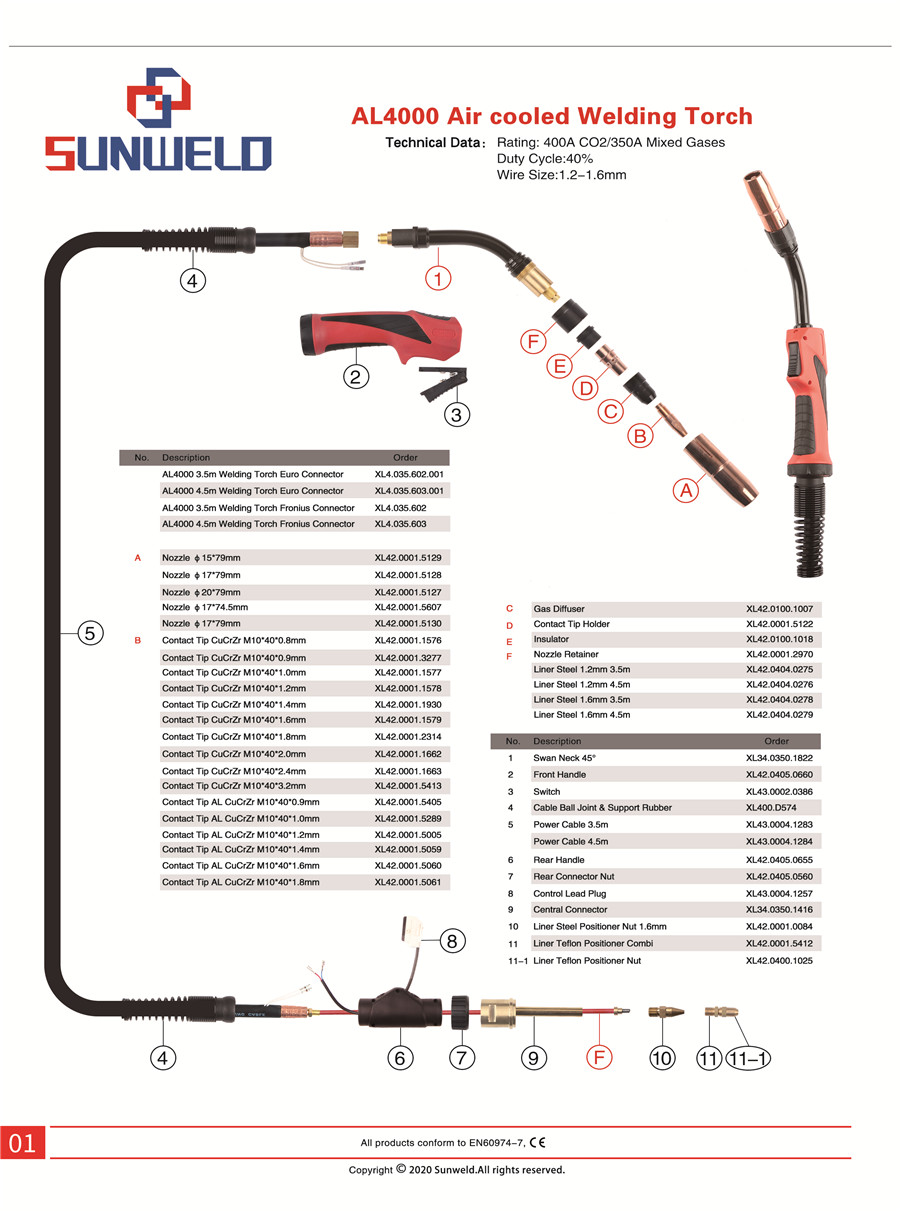

AL4000 Air cooled Welding Torch |
|
| Technical Data： |
Rating: 400A CO2/350A Mixed Gases |
|
|
Duty Cycle:40% |
|
|
Wire Size:1.2-1.6mm |
|
| No. |
Description |
Order |
|
AL4000 3.5m Welding Torch Euro Connector |
XL4.035.602.001 |
|
AL4000 4.5m Welding Torch Euro Connector |
XL4.035.603.001 |
|
AL4000 3.5m Welding Torch Fronius Connector |
XL4.035.602 |
|
AL4000 4.5m Welding Torch Fronius Connector |
XL4.035.603 |
|
|
|
| A |
Nozzle φ15*79mm |
XL42.0001.5129 |
|
Nozzle φ17*79mm |
XL42.0001.5128 |
|
Nozzle φ20*79mm |
XL42.0001.5127 |
|
Nozzle φ17*74.5mm |
XL42.0001.5607 |
|
Nozzle φ17*79mm |
XL42.0001.5130 |
| B |
Contact Tip CuCrZr M10*40*0.8mm |
XL42.0001.1576 |
|
Contact Tip CuCrZr M10*40*0.9mm |
XL42.0001.3277 |
|
Contact Tip CuCrZr M10*40*1.0mm |
XL42.0001.1577 |
|
Contact Tip CuCrZr M10*40*1.2mm |
XL42.0001.1578 |
|
Contact Tip CuCrZr M10*40*1.4mm |
XL42.0001.1930 |
|
Contact Tip CuCrZr M10*40*1.6mm |
XL42.0001.1579 |
|
Contact Tip CuCrZr M10*40*1.8mm |
XL42.0001.2314 |
|
Contact Tip CuCrZr M10*40*2.0mm |
XL42.0001.1662 |
|
Contact Tip CuCrZr M10*40*2.4mm |
XL42.0001.1663 |
|
Contact Tip CuCrZr M10*40*3.2mm |
XL42.0001.5413 |
|
Contact Tip AL CuCrZr M10*40*0.9mm |
XL42.0001.5405 |
|
Contact Tip AL CuCrZr M10*40*1.0mm |
XL42.0001.5289 |
|
Contact Tip AL CuCrZr M10*40*1.2mm |
XL42.0001.5005 |
|
Contact Tip AL CuCrZr M10*40*1.4mm |
XL42.0001.5059 |
|
Contact Tip AL CuCrZr M10*40*1.6mm |
XL42.0001.5060 |
|
Contact Tip AL CuCrZr M10*40*1.8mm |
XL42.0001.5061 |
| C |
Gas Diffuser |
XL42.0100.1007 |
| D |
Contact Tip Holder |
XL42.0001.5122 |
| E |
Insulator |
XL42.0100.1018 |
| F |
Nozzle Retainer |
XL42.0001.2970 |
| G |
Liner Steel 1.2mm 3.5m |
XL42.0404.0275 |
|
Liner Steel 1.2mm 4.5m |
XL42.0404.0276 |
|
Liner Steel 1.6mm 3.5m |
XL42.0404.0278 |
|
Liner Steel 1.6mm 4.5m |
XL42.0404.0279 |
|
|
|
| No. |
Description |
Order |
| 1 |
Swan Neck 45° |
XL34.0350.1822 |
| 2 |
Front Handle |
XL42.0405.0660 |
| 3 |
Switch |
XL43.0002.0386 |
| 4 |
Cable Ball Joint & Support Rubber |
XL400.D574 |
| 5 |
Power Cable 3.5m |
XL43.0004.1283 |
|
Power Cable 4.5m |
XL43.0004.1284 |
| 6 |
Rear Handle |
XL42.0405.0655 |
| 7 |
Rear Connector Nut |
XL42.0405.0560 |
| 8 |
Control Lead Plug |
XL43.0004.1257 |
| 9 |
Central Connector |
XL34.0350.1416 |
| 10 |
Liner Steel Positioner Nut 1.6mm |
XL42.0350.0084 |
| 11 |
Liner Teflon Positioner Combi |
XL42.0001.5412 |
| 11-1 |
Liner Teflon Positioner Nut |
XL42.0400.1025 |
