AL3000 Air cooled Welding Torch(XL4.035.600.001 XL4.035.601.001 XL4.035.600 XL4.035.601)

AL3000 Air cooled Welding Torch(XL4.035.600.001 XL4.035.601.001 XL4.035.600 XL4.035.601)

Short Description:

AL3000 Air cooled Welding Torch
Technical Data： Rating: 300A CO2/250A Mixed Gases
Duty Cycle:40%
Wire Size:1.0-1.2mm
AL3000 3.5m Welding Torch Euro Connector XL4.035.600.001
AL3000 4.5m Welding Torch Euro Connector XL4.035.601.001
AL3000 3.5m Welding Torch Fronius Connector XL4.035.600
AL3000 4.5m Welding Torch Fronius Connector XL4.035.601


Product Detail

Product Tags

AL3000

AL3000 Air cooled Welding Torch
Technical Data： Rating: 300A CO2/250A Mixed Gases
Duty Cycle:40%
Wire Size:1.0-1.2mm

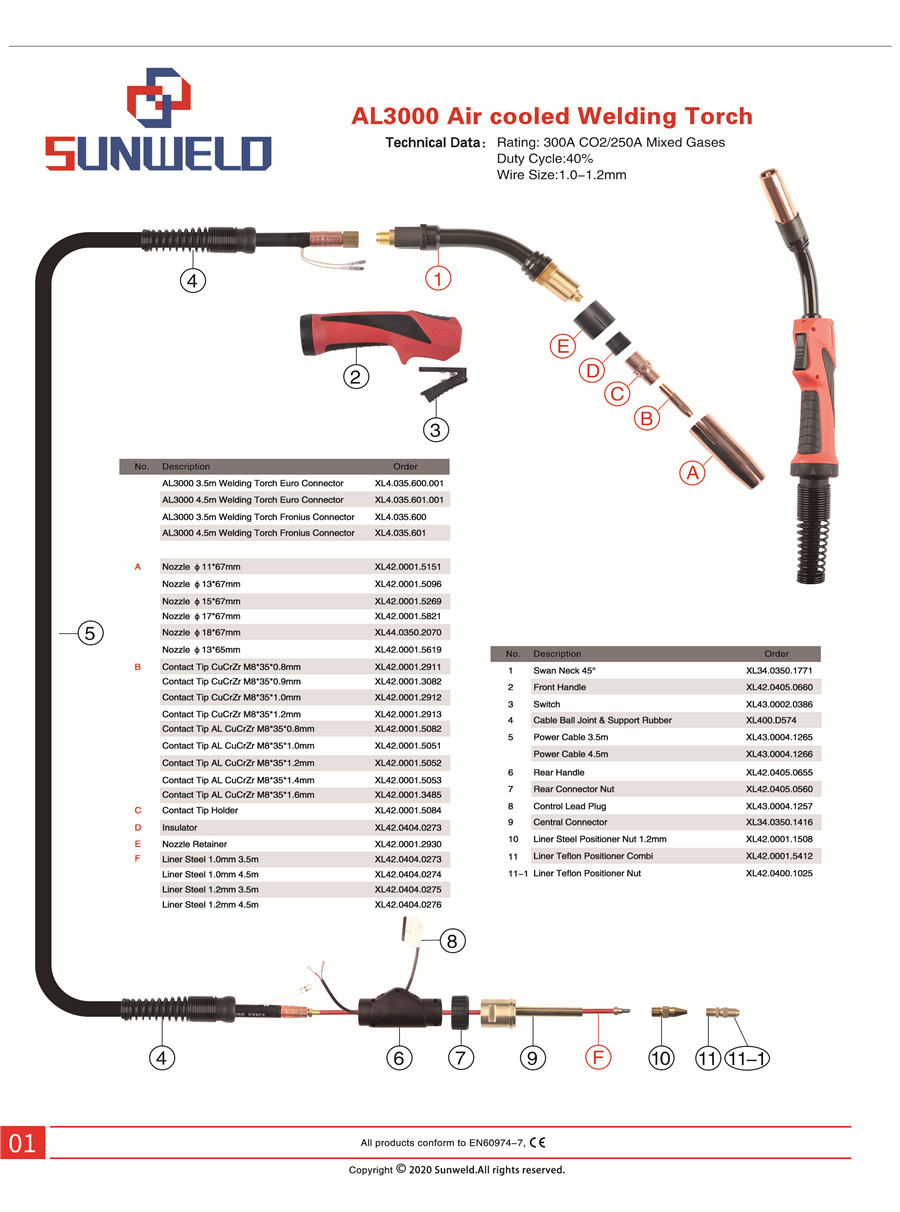

No. Description Order
AL3000 3.5m Welding Torch Euro Connector XL4.035.600.001
AL3000 4.5m Welding Torch Euro Connector XL4.035.601.001
AL3000 3.5m Welding Torch Fronius Connector XL4.035.600
AL3000 4.5m Welding Torch Fronius Connector XL4.035.601
A Nozzle φ11*67mm XL42.0001.5151
Nozzle φ13*67mm XL42.0001.5096
Nozzle φ15*67mm XL42.0001.5269
Nozzle φ17*67mm XL42.0001.5821
Nozzle φ18*67mm XL44.0350.2070
Nozzle φ13*65mm XL42.0001.5619
B Contact Tip CuCrZr M8*35*0.8mm XL42.0001.2911
Contact Tip CuCrZr M8*35*0.9mm XL42.0001.3082
Contact Tip CuCrZr M8*35*1.0mm XL42.0001.2912
Contact Tip CuCrZr M8*35*1.2mm XL42.0001.2913
Contact Tip AL CuCrZr M8*35*0.8mm XL42.0001.5082
Contact Tip AL CuCrZr M8*35*1.0mm XL42.0001.5051
Contact Tip AL CuCrZr M8*35*1.2mm XL42.0001.5052
Contact Tip AL CuCrZr M8*35*1.4mm XL42.0001.5053
Contact Tip AL CuCrZr M8*35*1.6mm XL42.0001.3485
C Contact Tip Holder XL42.0001.5084
D Insulator XL42.0100.1014
E Nozzle Retainer XL42.0001.2930
F Liner Steel 1.0mm 3.5m XL42.0404.0273
Liner Steel 1.0mm 4.5m XL42.0404.0274
Liner Steel 1.2mm 3.5m XL42.0404.0275
Liner Steel 1.2mm 4.5m XL42.0404.0276
No. Description Order
1 Swan Neck 45° XL34.0350.1771
2 Front Handle XL42.0405.0660
3 Switch XL43.0002.0386
4 Cable Ball Joint & Support Rubber XL400.D574
5 Power Cable 3.5m XL43.0004.1265
Power Cable 4.5m XL43.0004.1266
6 Rear Handle XL42.0405.0655
7 Rear Connector Nut XL42.0405.0560
8 Control Lead Plug XL43.0004.1257
9 Central Connector XL34.0350.1416
10 Liner Steel Positioner Nut 1.2mm XL42.0001.1508
11 Liner Teflon Positioner Combi XL42.0001.5412
11-1 Liner Teflon Positioner Nut XL42.0400.1025
