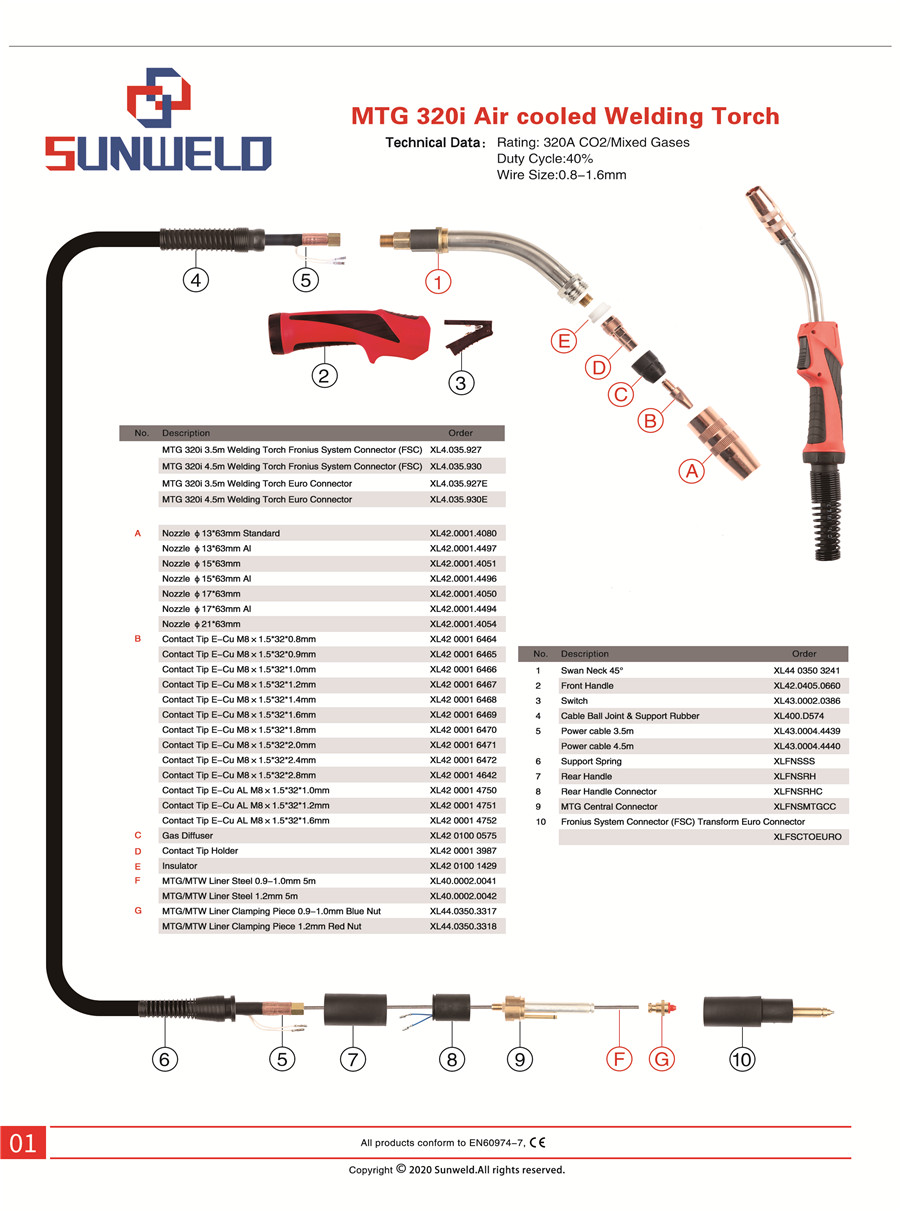

MTG 320i Air cooled Welding Torch |
|
| Technical Data： |
Rating: 320A CO2/Mixed Gases |
|
|
Duty Cycle:40% |
|
|
Wire Size:0.8-1.6mm |
|
| No. |
Description |
Order |
|
MTG 320i 3.5m Welding Torch Fronius System Connector (FSC) |
XL4.035.927 |
|
MTG 320i 4.5m Welding Torch Fronius System Connector (FSC) |
XL4.035.930 |
|
MTG 320i 3.5m Welding Torch Euro Connector |
XL4.035.927E |
|
MTG 320i 4.5m Welding Torch Euro Connector |
XL4.035.930E |
|
|
|
| A |
Nozzle φ13*63mm Standard |
XL42.0001.4080 |
|
Nozzle φ13*63mm Al |
XL42.0001.4497 |
|
Nozzle φ15*63mm |
XL42.0001.4051 |
|
Nozzle φ15*63mm Al |
XL42.0001.4496 |
|
Nozzle φ17*63mm |
XL42.0001.4050 |
|
Nozzle φ17*63mm Al |
XL42.0001.4494 |
|
Nozzle φ21*63mm |
XL42.0001.4054 |
| B |
Contact Tip E-Cu M8×1.5*32*0.8mm |
XL42 0001 6464 |
|
Contact Tip E-Cu M8×1.5*32*0.9mm |
XL42 0001 6465 |
|
Contact Tip E-Cu M8×1.5*32*1.0mm |
XL42 0001 6466 |
|
Contact Tip E-Cu M8×1.5*32*1.2mm |
XL42 0001 6467 |
|
Contact Tip E-Cu M8×1.5*32*1.4mm |
XL42 0001 6468 |
|
Contact Tip E-Cu M8×1.5*32*1.6mm |
XL42 0001 6469 |
|
Contact Tip E-Cu M8×1.5*32*1.8mm |
XL42 0001 6470 |
|
Contact Tip E-Cu M8×1.5*32*2.0mm |
XL42 0001 6471 |
|
Contact Tip E-Cu M8×1.5*32*2.4mm |
XL42 0001 6472 |
|
Contact Tip E-Cu M8×1.5*32*2.8mm |
XL42 0001 4642 |
|
Contact Tip E-Cu AL M8×1.5*32*1.0mm |
XL42 0001 4750 |
|
Contact Tip E-Cu AL M8×1.5*32*1.2mm |
XL42 0001 4751 |
|
Contact Tip E-Cu AL M8×1.5*32*1.6mm |
XL42 0001 4752 |
| C |
Gas Diffuser |
XL42 0100 0575 |
| D |
Contact Tip Holder |
XL42 0001 3987 |
| E |
Insulator |
XL42 0100 1429 |
| F |
MTG/MTW Liner Steel 0.9-1.0mm 5m |
XL40.0002.0041 |
|
MTG/MTW Liner Steel 1.2mm 5m |
XL40.0002.0042 |
| G |
MTG/MTW Liner Clamping Piece 0.9-1.0mm Blue Nut |
XL44.0350.3317 |
|
MTG/MTW Liner Clamping Piece 1.2mm Red Nut |
XL44.0350.3318 |
|
|
|
| No. |
Description |
Order |
| 1 |
Swan Neck 45° |
XL44 0350 3241 |
| 2 |
Front Handle |
XL42.0405.0660 |
| 3 |
Switch |
XL43.0002.0386 |
| 4 |
Cable Ball Joint & Support Rubber |
XL400.D574 |
| 5 |
Power cable 3.5m |
XL43.0004.5248 |
|
Power cable 4.5m |
XL43.0004.5247 |
| 6 |
Support Spring |
XLFNSSS |
| 7 |
Rear Handle |
XLFNSRH |
| 8 |
Rear Handle Connector |
XLFNSRHC |
| 9 |
MTG Central Connector |
XLFNSMTGCC |
| 10 |
Fronius System Connector (FSC) Transform Euro Connector |
XLFSCTOEURO |
