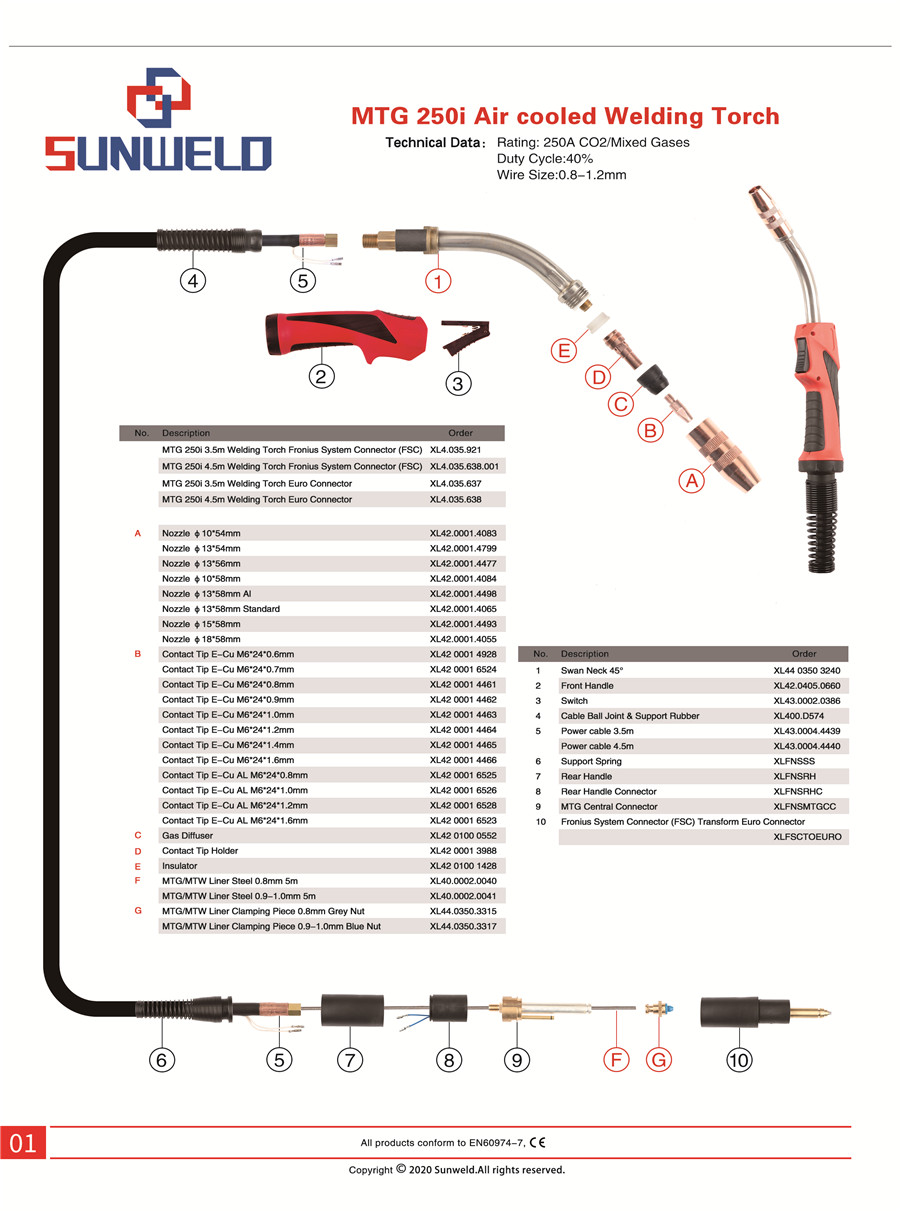

MTG 250i Air cooled Welding Torch |
|
| Technical Data： |
Rating: 250A CO2/Mixed Gases |
|
|
Duty Cycle:40% |
|
|
Wire Size:0.8-1.2mm |
|
| No. |
Description |
Order |
|
MTG 250i 3.5m Welding Torch Fronius System Connector (FSC) |
XL4.035.921 |
|
MTG 250i 4.5m Welding Torch Fronius System Connector (FSC) |
XL4.035.924 |
|
MTG 250i 3.5m Welding Torch Euro Connector |
XL4.035.921E |
|
MTG 250i 4.5m Welding Torch Euro Connector |
XL4.035.924E |
|
|
|
| A |
Nozzle φ10*54mm |
XL42.0001.4083 |
|
Nozzle φ13*54mm |
XL42.0001.4799 |
|
Nozzle φ13*56mm |
XL42.0001.4477 |
|
Nozzle φ10*58mm |
XL42.0001.4084 |
|
Nozzle φ13*58mm Al |
XL42.0001.4498 |
|
Nozzle φ13*58mm Standard |
XL42.0001.4065 |
|
Nozzle φ15*58mm |
XL42.0001.4493 |
|
Nozzle φ18*58mm |
XL42.0001.4055 |
| B |
Contact Tip E-Cu M6*24*0.6mm |
XL42 0001 4928 |
|
Contact Tip E-Cu M6*24*0.7mm |
XL42 0001 6524 |
|
Contact Tip E-Cu M6*24*0.8mm |
XL42 0001 4461 |
|
Contact Tip E-Cu M6*24*0.9mm |
XL42 0001 4462 |
|
Contact Tip E-Cu M6*24*1.0mm |
XL42 0001 4463 |
|
Contact Tip E-Cu M6*24*1.2mm |
XL42 0001 4464 |
|
Contact Tip E-Cu M6*24*1.4mm |
XL42 0001 4465 |
|
Contact Tip E-Cu M6*24*1.6mm |
XL42 0001 4466 |
|
Contact Tip E-Cu AL M6*24*0.8mm |
XL42 0001 6525 |
|
Contact Tip E-Cu AL M6*24*1.0mm |
XL42 0001 6526 |
|
Contact Tip E-Cu AL M6*24*1.2mm |
XL42 0001 6528 |
|
Contact Tip E-Cu AL M6*24*1.6mm |
XL42 0001 6523 |
| C |
Gas Diffuser |
XL42 0100 0552 |
| D |
Contact Tip Holder |
XL42 0001 3988 |
| E |
Insulator |
XL42 0100 1428 |
| F |
MTG/MTW Liner Steel 0.8mm 5m |
XL40.0002.0040 |
|
MTG/MTW Liner Steel 0.9-1.0mm 5m |
XL40.0002.0041 |
| G |
MTG/MTW Liner Clamping Piece 0.8mm Grey Nut |
XL44.0350.3315 |
|
MTG/MTW Liner Clamping Piece 0.9-1.0mm Blue Nut |
XL44.0350.3317 |
|
|
|
| No. |
Description |
Order |
| 1 |
Swan Neck 45° |
XL44 0350 3240 |
| 2 |
Front Handle |
XL42.0405.0660 |
| 3 |
Switch |
XL43.0002.0386 |
| 4 |
Cable Ball Joint & Support Rubber |
XL400.D574 |
| 5 |
Power cable 3.5m |
XL43.0004.4439 |
|
Power cable 4.5m |
XL43.0004.4440 |
| 6 |
Support Spring |
XLFNSSS |
| 7 |
Rear Handle |
XLFNSRH |
| 8 |
Rear Handle Connector |
XLFNSRHC |
| 9 |
MTG Central Connector |
XLFNSMTGCC |
| 10 |
Fronius System Connector (FSC) Transform Euro Connector |
XLFSCTOEURO |
