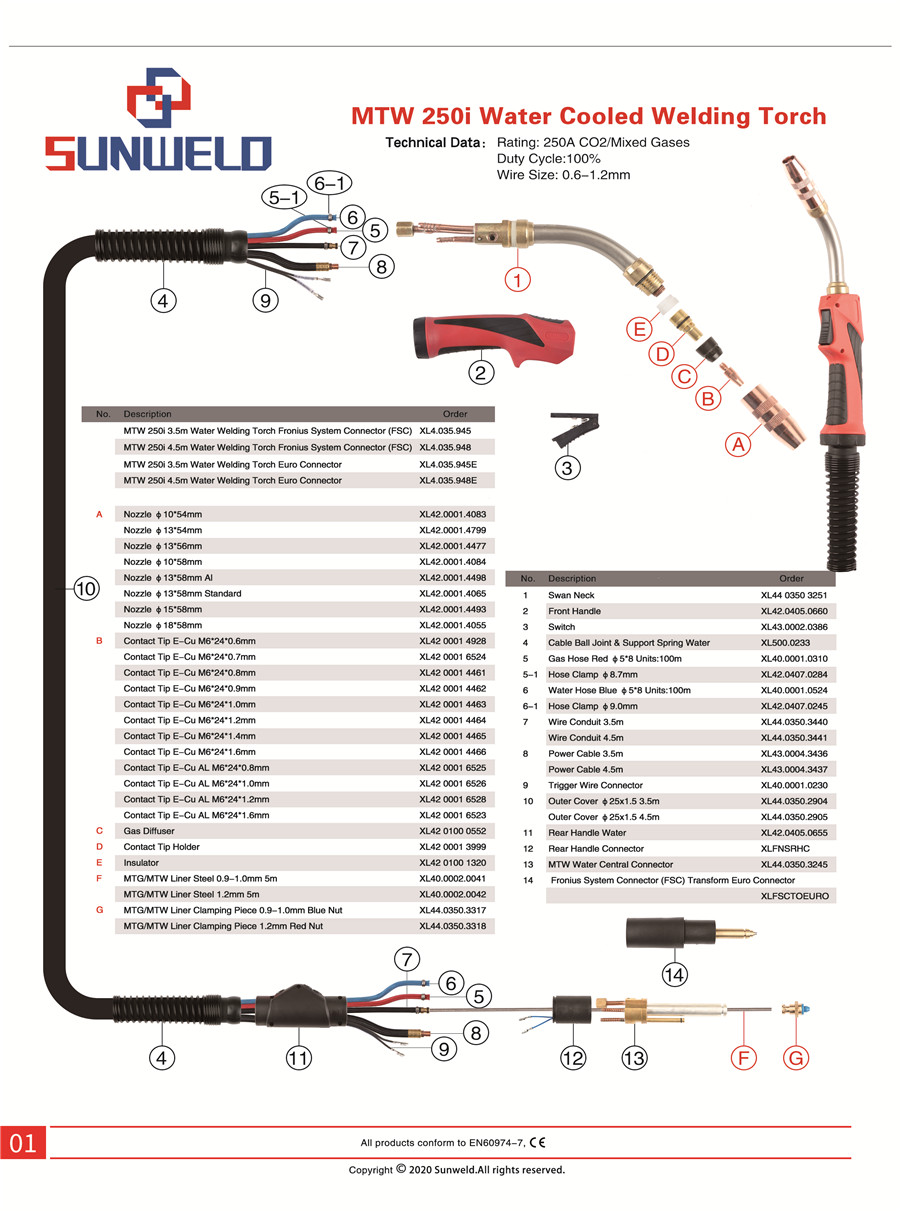

MTW 250i Water Cooled Welding Torch |
|
| Technical Data： |
Rating: 250A CO2/Mixed Gases |
|
|
Duty Cycle:100% |
|
|
Wire Size: 0.6-1.2mm |
|
| No. |
Description |
Order |
|
MTW 250i 3.5m Water Welding Torch Fronius System Connector (FSC) |
XL4.035.945 |
|
MTW 250i 4.5m Water Welding Torch Fronius System Connector (FSC) |
XL4.035.948 |
|
MTW 250i 3.5m Water Welding Torch Euro Connector |
XL4.035.945E |
|
MTW 250i 4.5m Water Welding Torch Euro Connector |
XL4.035.948E |
|
|
|
| A |
Nozzle φ10*54mm |
XL42.0001.4083 |
|
Nozzle φ13*54mm |
XL42.0001.4799 |
|
Nozzle φ13*56mm |
XL42.0001.4477 |
|
Nozzle φ10*58mm |
XL42.0001.4084 |
|
Nozzle φ13*58mm Al |
XL42.0001.4498 |
|
Nozzle φ13*58mm Standard |
XL42.0001.4065 |
|
Nozzle φ15*58mm |
XL42.0001.4493 |
|
Nozzle φ18*58mm |
XL42.0001.4055 |
| B |
Contact Tip E-Cu M6*24*0.6mm |
XL42 0001 4928 |
|
Contact Tip E-Cu M6*24*0.7mm |
XL42 0001 6524 |
|
Contact Tip E-Cu M6*24*0.8mm |
XL42 0001 4461 |
|
Contact Tip E-Cu M6*24*0.9mm |
XL42 0001 4462 |
|
Contact Tip E-Cu M6*24*1.0mm |
XL42 0001 4463 |
|
Contact Tip E-Cu M6*24*1.2mm |
XL42 0001 4464 |
|
Contact Tip E-Cu M6*24*1.4mm |
XL42 0001 4465 |
|
Contact Tip E-Cu M6*24*1.6mm |
XL42 0001 4466 |
|
Contact Tip E-Cu AL M6*24*0.8mm |
XL42 0001 6525 |
|
Contact Tip E-Cu AL M6*24*1.0mm |
XL42 0001 6526 |
|
Contact Tip E-Cu AL M6*24*1.2mm |
XL42 0001 6528 |
|
Contact Tip E-Cu AL M6*24*1.6mm |
XL42 0001 6523 |
| C |
Gas Diffuser |
XL42 0100 0552 |
| D |
Contact Tip Holder |
XL42 0001 3999 |
| E |
Insulator |
XL42 0100 1320 |
| F |
MTG/MTW Liner Steel 0.9-1.0mm 5m |
XL40.0002.0041 |
|
MTG/MTW Liner Steel 1.2mm 5m |
XL40.0002.0042 |
| G |
MTG/MTW Liner Clamping Piece 0.9-1.0mm Blue Nut |
XL44.0350.3317 |
|
MTG/MTW Liner Clamping Piece 1.2mm Red Nut |
XL44.0350.3318 |
|
|
|
| No. |
Description |
Order |
| 1 |
Swan Neck |
XL44 0350 3251 |
| 2 |
Front Handle |
XL42.0405.0660 |
| 3 |
Switch |
XL43.0002.0386 |
| 4 |
Cable Ball Joint & Support Spring Water |
XL500.0233 |
| 5 |
Gas Hose Red φ5*8 Units:100m |
XL40.0001.0310 |
| 5-1 |
Hose Clamp φ8.7mm |
XL42.0407.0284 |
| 6 |
Water Hose Blue φ5*8 Units:100m |
XL40.0001.0524 |
| 6-1 |
Hose Clamp φ9.0mm |
XL42.0407.0245 |
| 7 |
Wire Conduit 3.5m |
XL44.0350.3440 |
|
Wire Conduit 4.5m |
XL44.0350.3441 |
| 8 |
Power Cable 3.5m |
XL43.0004.3436 |
|
Power Cable 4.5m |
XL43.0004.3437 |
| 9 |
Trigger Wire Connector |
XL40.0001.0230 |
| 10 |
Outer Cover φ25×1.5 3.5m |
XL44.0350.2904 |
|
Outer Cover φ25×1.5 4.5m |
XL44.0350.2905 |
| 11 |
Rear Handle Water |
XL42.0405.0655 |
| 12 |
Rear Handle Connector |
XLFNSRHC |
| 13 |
MTW Water Central Connector |
XL44.0350.3245 |
| 14 |
Fronius System Connector (FSC) Transform Euro Connector |
XLFSCTOEURO |
