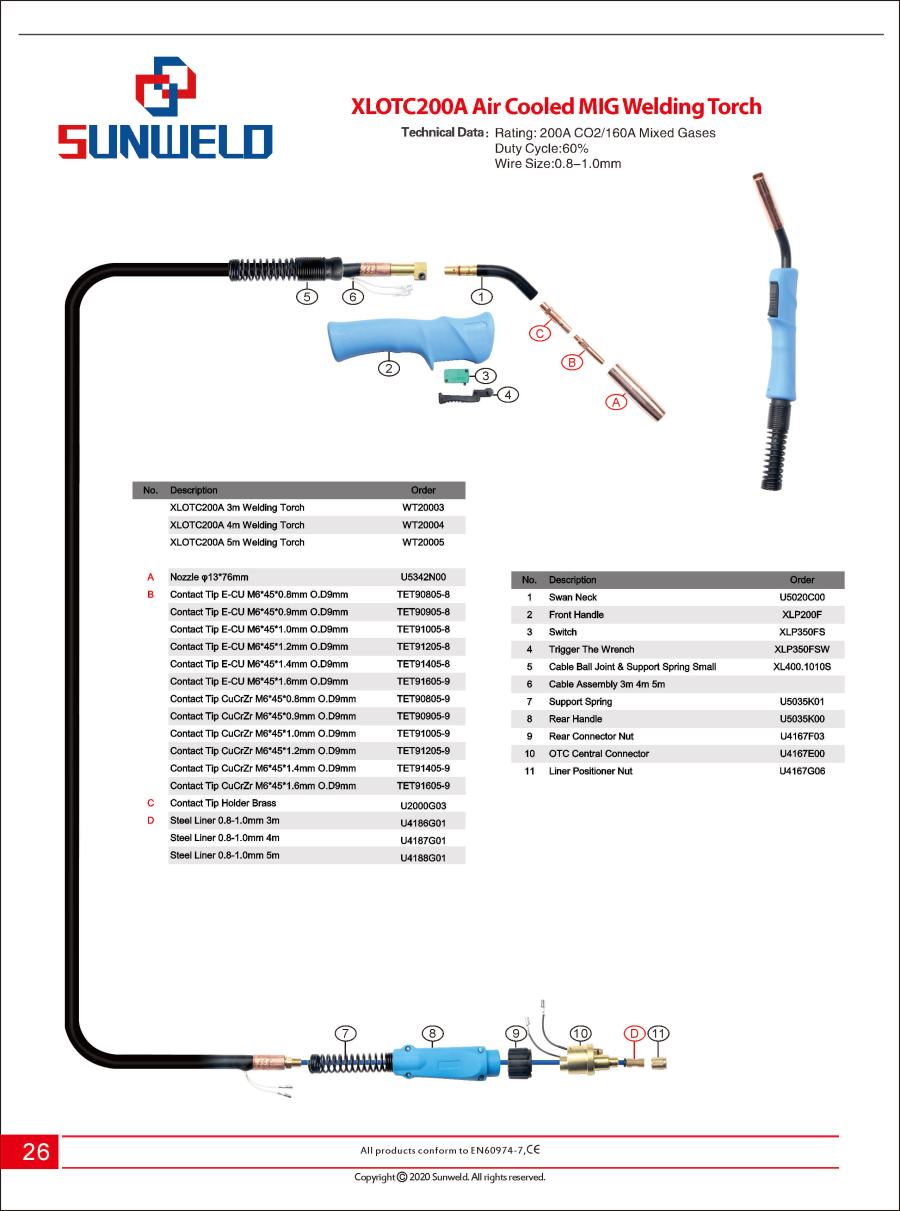

| XLOTC200A Air Cooled MIG Welding Torch |
| Technical Data： |
Rating: 200A CO2/160A Mixed Gases |
|
|
Duty Cycle:60% |
|
|
Wire Size:0.8-1.0mm |
|
| No. |
Description |
Order |
|
XLOTC200A 3m Welding Torch |
WT20003 |
|
XLOTC200A 4m Welding Torch |
WT20004 |
|
XLOTC200A 5m Welding Torch |
WT20005 |
|
|
|
| A |
Nozzle φ13*76mm |
U5342N00 |
| B |
Contact Tip E-CU M6*45*0.8mm O.D9mm |
TET90805-8 |
|
Contact Tip E-CU M6*45*0.9mm O.D9mm |
TET90905-8 |
|
Contact Tip E-CU M6*45*1.0mm O.D9mm |
TET91005-8 |
|
Contact Tip E-CU M6*45*1.2mm O.D9mm |
TET91205-8 |
|
Contact Tip E-CU M6*45*1.4mm O.D9mm |
TET91405-8 |
|
Contact Tip E-CU M6*45*1.6mm O.D9mm |
TET91605-9 |
|
Contact Tip CuCrZr M6*45*0.8mm O.D9mm |
TET90805-9 |
|
Contact Tip CuCrZr M6*45*0.9mm O.D9mm |
TET90905-9 |
|
Contact Tip CuCrZr M6*45*1.0mm O.D9mm |
TET91005-9 |
|
Contact Tip CuCrZr M6*45*1.2mm O.D9mm |
TET91205-9 |
|
Contact Tip CuCrZr M6*45*1.4mm O.D9mm |
TET91405-9 |
|
Contact Tip CuCrZr M6*45*1.6mm O.D9mm |
TET91605-9 |
| C |
Contact Tip Holder Brass |
U2000G03 |
| D |
Steel Liner 0.8-1.0mm 3m |
U4186G01 |
|
Steel Liner 0.8-1.0mm 4m |
U4187G01 |
|
Steel Liner 0.8-1.0mm 5m |
U4188G01 |
|
|
|
| No. |
Description |
Order |
| 1 |
Swan Neck |
U5020C00 |
| 2 |
Front Handle |
XLP200F |
| 3 |
Switch |
XLP350FS |
| 4 |
Trigger The Wrench |
XLP350FSW |
| 5 |
Cable Ball Joint & Support Spring Small |
XL400.1010S |
| 6 |
Cable Assembly 3m 4m 5m |
|
| 7 |
Support Spring |
U5035K01 |
| 8 |
Rear Handle |
U5035K00 |
| 9 |
Rear Connector Nut |
U4167F03 |
| 10 |
OTC Central Connector |
U4167E00 |
| 11 |
Liner Positioner Nut |
U4167G06 |
