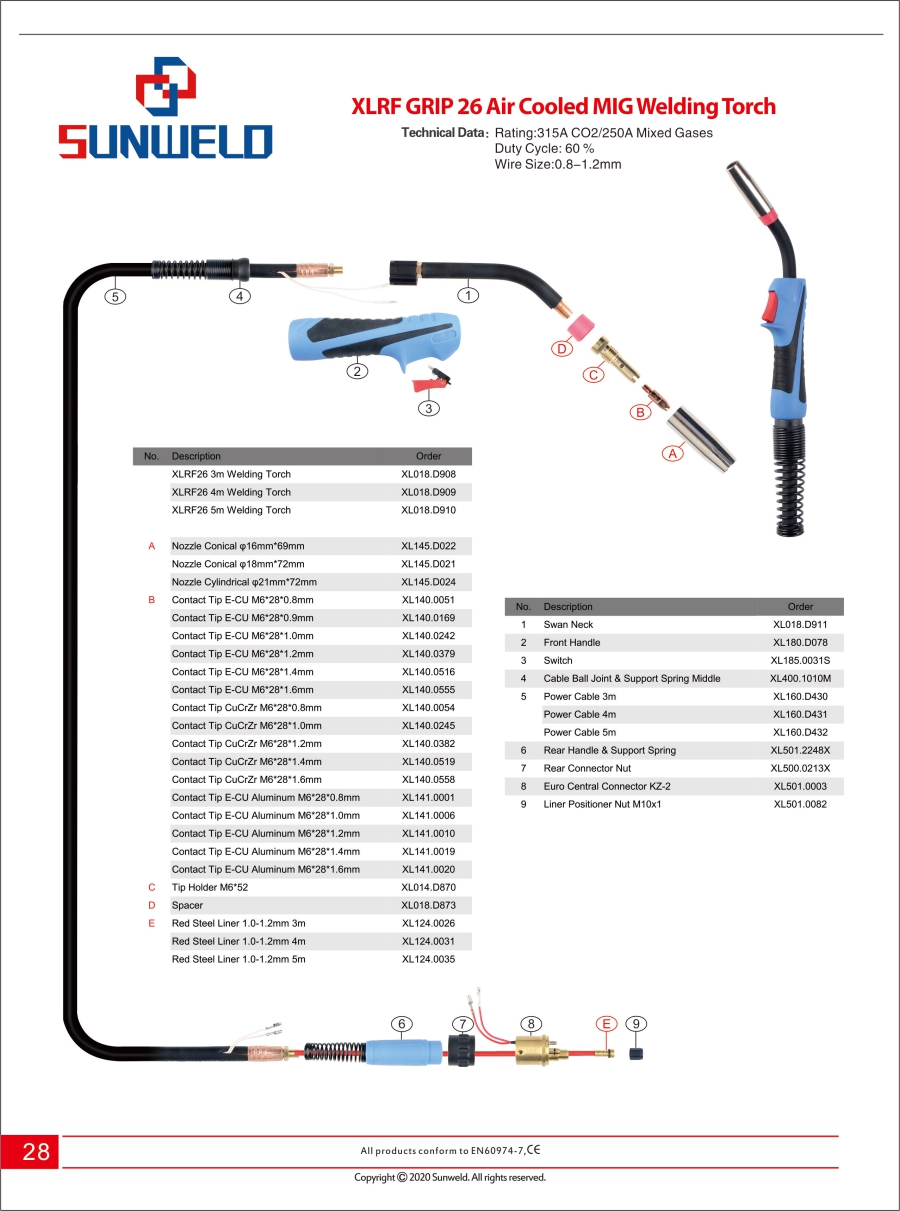

| XLRF GRIP 26 Air Cooled MIG Welding Torch |
| Technical Data： |
Rating:315A CO2/250A Mixed Gases |
|
|
Duty Cycle:60% |
|
|
Wire Size:0.8-1.2mm |
|
| No. |
Description |
Order |
|
XLRF26 3m Welding Torch |
XL018.D908 |
|
XLRF26 4m Welding Torch |
XL018.D909 |
|
XLRF26 5m Welding Torch |
XL018.D910 |
|
|
|
| A |
Nozzle Conical φ16mm*69mm |
XL145.D022 |
|
Nozzle Conical φ18mm*72mm |
XL145.D021 |
|
Nozzle Cylindrical φ21mm*72mm |
XL145.D024 |
| B |
Contact Tip E-CU M6*28*0.8mm |
XL140.0051 |
|
Contact Tip E-CU M6*28*0.9mm |
XL140.0169 |
|
Contact Tip E-CU M6*28*1.0mm |
XL140.0242 |
|
Contact Tip E-CU M6*28*1.2mm |
XL140.0379 |
|
Contact Tip E-CU M6*28*1.4mm |
XL140.0516 |
|
Contact Tip E-CU M6*28*1.6mm |
XL140.0555 |
|
Contact Tip CuCrZr M6*28*0.8mm |
XL140.0054 |
|
Contact Tip CuCrZr M6*28*1.0mm |
XL140.0245 |
|
Contact Tip CuCrZr M6*28*1.2mm |
XL140.0382 |
|
Contact Tip CuCrZr M6*28*1.4mm |
XL140.0519 |
|
Contact Tip CuCrZr M6*28*1.6mm |
XL140.0558 |
|
Contact Tip E-CU Aluminum M6*28*0.8mm |
XL141.0001 |
|
Contact Tip E-CU Aluminum M6*28*1.0mm |
XL141.0006 |
|
Contact Tip E-CU Aluminum M6*28*1.2mm |
XL141.0010 |
|
Contact Tip E-CU Aluminum M6*28*1.4mm |
XL141.0019 |
|
Contact Tip E-CU Aluminum M6*28*1.6mm |
XL141.0020 |
| C |
Tip Holder M6*52 |
XL014.D870 |
| D |
Spacer |
XL018.D873 |
| E |
Red Steel Liner 1.0-1.2mm 3m |
XL124.0026 |
|
Red Steel Liner 1.0-1.2mm 4m |
XL124.0031 |
|
Red Steel Liner 1.0-1.2mm 5m |
XL124.0035 |
|
|
|
| No. |
Description |
Order |
| 1 |
Swan Neck |
XL018.D911 |
| 2 |
Front Handle |
XL180.D078 |
| 3 |
Switch |
XL185.0031S |
| 4 |
Cable Ball Joint & Support Spring Middle |
XL400.1010M |
| 5 |
Power Cable 3m |
XL160.D430 |
|
Power Cable 4m |
XL160.D431 |
|
Power Cable 5m |
XL160.D432 |
| 6 |
Rear Handle & Support Spring |
XL501.2248X |
| 7 |
Rear Connector Nut |
XL500.0213X |
| 8 |
Euro Central Connector KZ-2 |
XL501.0003 |
| 9 |
Liner Positioner Nut M10x1 |
XL501.0082 |
