WP-27 TORCH BODY

WP-27 TORCH BODY

Short Description:

WP-27 TORCH BODY

Water-Cooled Machine Tig Welding Torch Body

Rating: 500A DC, 350A AC @ 100% duty cycle

1/16″ – 1/4″/1.6mm -6.4mm Electrodes


Product Detail

Product Tags

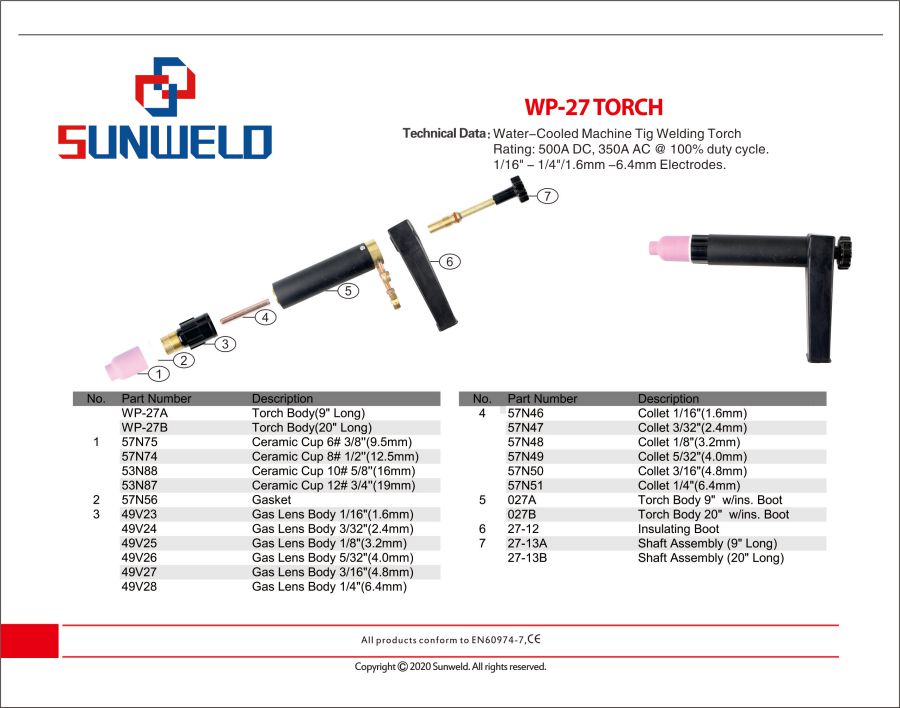

No. Part Number Description
WP-27A Torch Body(9″ Long)
WP-27B Torch Body(20″ Long)
1 57N75 Ceramic Cup 6# 3/8”(9.5mm)
57N74 Ceramic Cup 8# 1/2”(12.5mm)
53N88 Ceramic Cup 10# 5/8”(16mm)
53N87 Ceramic Cup 12# 3/4”(19mm)
2 57N56 Gasket
3 49V23 Gas Lens Body 1/16″(1.6mm)
49V24 Gas Lens Body 3/32″(2.4mm)
49V25 Gas Lens Body 1/8″(3.2mm)
49V26 Gas Lens Body 5/32″(4.0mm)
49V27 Gas Lens Body 3/16″(4.8mm)
49V28 Gas Lens Body 1/4″(6.4mm)
4 57N46 Collet 1/16″(1.6mm)
57N47 Collet 3/32″(2.4mm)
57N48 Collet 1/8″(3.2mm)
57N49 Collet 5/32″(4.0mm)
57N50 Collet 3/16″(4.8mm)
57N51 Collet 1/4″(6.4mm)
5 027A Torch Body 9″  w/ins. Boot
027B Torch Body 20″  w/ins. Boot
6 27-12 Insulating Boot
7 27-13A Shaft Assembly (9″ Long)
27-13B Shaft Assembly (20″ Long)

8
