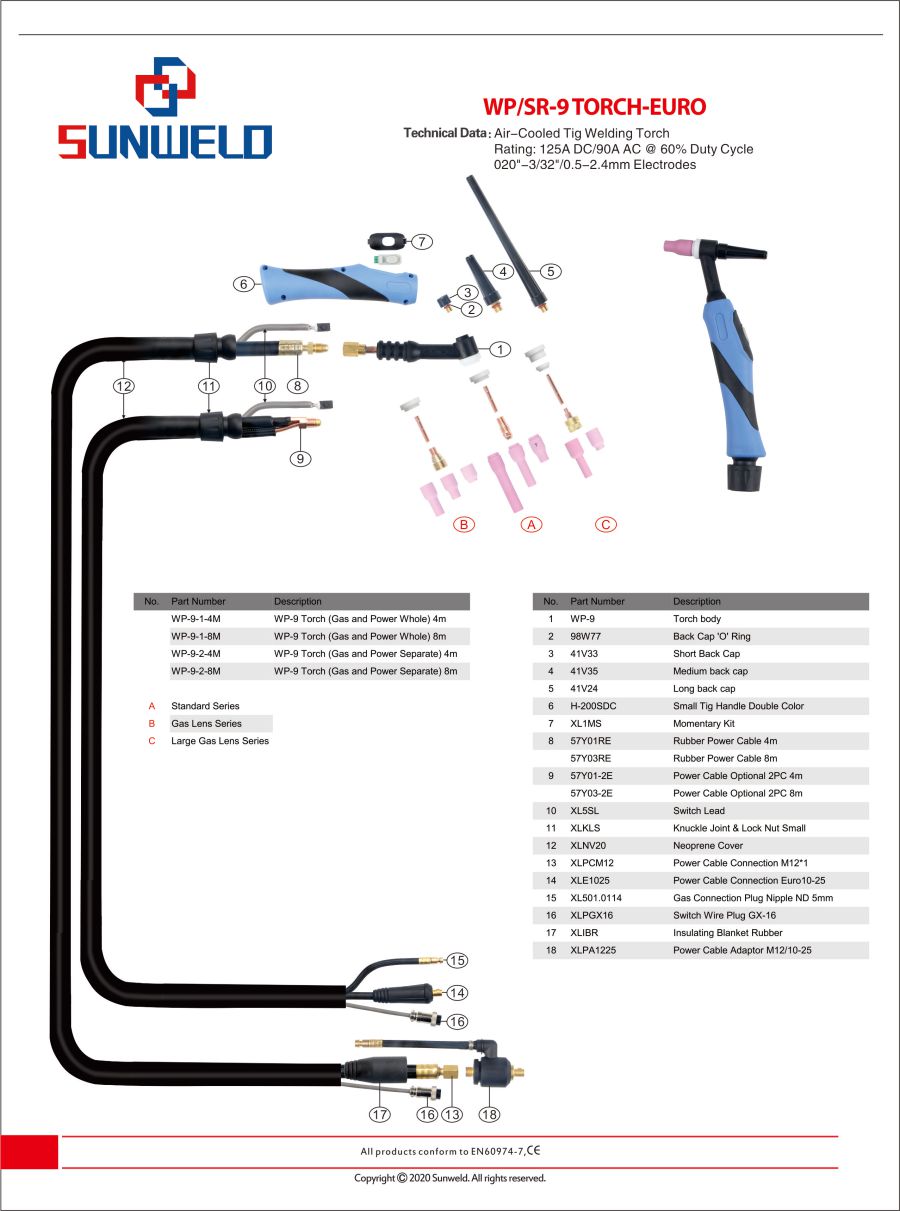

WP/SR-9 TORCH-EURO |
|
Air-Cooled Tig Welding Torch |
|
|
Rating: 125A DC/90A AC @ 60% Duty Cycle |
|
|
.020″-3/32″/0.5-2.4mm Electrodes |
|
|
|
|
| No. |
Part Number |
Description |
|
WP-9-1-4M |
WP-9 Torch (Gas and Power Whole) 4m |
|
WP-9-1-8M |
WP-9 Torch (Gas and Power Whole) 8m |
|
WP-9-2-4M |
WP-9 Torch (Gas and Power Separate) 4m |
|
WP-9-2-8M |
WP-9 Torch (Gas and Power Separate) 8m |
|
|
|
| A |
Standard Series |
|
| B |
Gas Lens Series |
|
| C |
Large Gas Lens Series |
|
|
|
|
| No. |
Part Number |
Description |
| 1 |
WP-9 |
Torch body |
| 2 |
98W77 |
Back Cap ‘O’ Ring |
| 3 |
41V33 |
Short Back Cap |
| 4 |
41V35 |
Medium back cap |
| 5 |
41V24 |
Long back cap |
| 6 |
H-200SDC |
Small Tig Handle Double Color |
| 7 |
XL1MS |
Momentary Kit |
| 8 |
57Y01RE |
Rubber Power Cable 4m |
|
57Y03RE |
Rubber Power Cable 8m |
| 9 |
57Y01-2E |
Power Cable Optional 2PC 4m |
|
57Y03-2E |
Power Cable Optional 2PC 8m |
| 10 |
XL5SL |
Switch Lead |
| 11 |
XLKLS |
Knuckle Joint & Lock Nut Small |
| 12 |
XLNV20 |
Neoprene Cover |
| 13 |
XLPCM12 |
Power Cable Connection M12*1 |
| 14 |
XLE1025 |
Power Cable Connection Euro10-25 |
| 15 |
XL501.0114 |
Gas Connection Plug Nipple ND 5mm |
| 16 |
XLPGX16 |
Switch Wire Plug GX-16 |
| 17 |
XLIBR |
Insulating Blanket Rubber |
| 18 |
XLPA1225 |
Power Cable Adaptor M12/10-25 |
