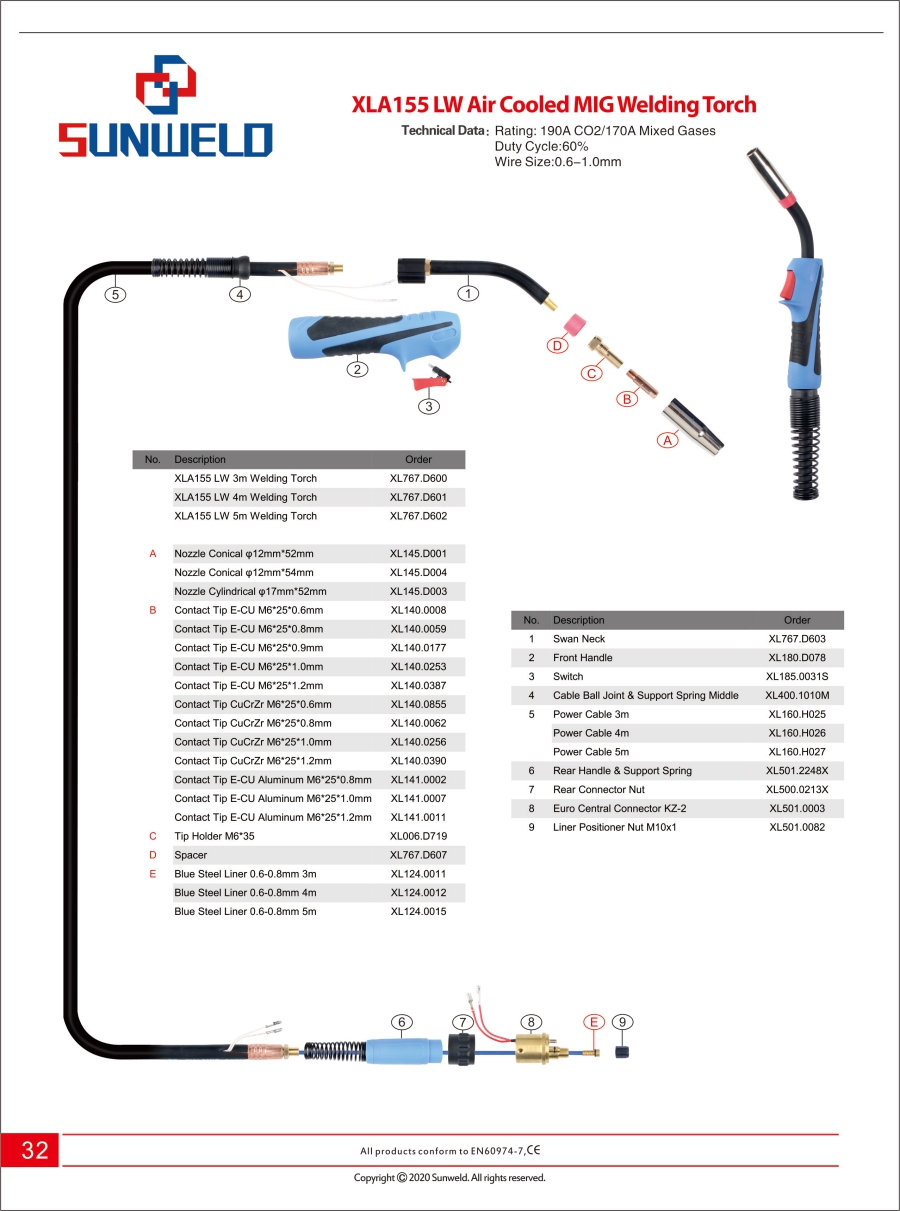

| XLA155 LW Air Cooled MIG Welding Torch |
| Technical Data： |
Rating: 190A CO2/170A Mixed Gases |
|
|
Duty Cycle:60% |
|
|
Wire Size:0.6-1.0mm |
|
| No. |
Description |
Order |
|
XLA155 LW 3m Welding Torch |
XL767.D600 |
|
XLA155 LW 4m Welding Torch |
XL767.D601 |
|
XLA155 LW 5m Welding Torch |
XL767.D602 |
|
|
|
| A |
Nozzle Conical φ12mm*52mm |
XL145.D001 |
|
Nozzle Conical φ12mm*54mm |
XL145.D004 |
|
Nozzle Cylindrical φ17mm*52mm |
XL145.D003 |
| B |
Contact Tip E-CU M6*25*0.6mm |
XL140.0008 |
|
Contact Tip E-CU M6*25*0.8mm |
XL140.0059 |
|
Contact Tip E-CU M6*25*0.9mm |
XL140.0177 |
|
Contact Tip E-CU M6*25*1.0mm |
XL140.0253 |
|
Contact Tip E-CU M6*25*1.2mm |
XL140.0387 |
|
Contact Tip CuCrZr M6*25*0.6mm |
XL140.0855 |
|
Contact Tip CuCrZr M6*25*0.8mm |
XL140.0062 |
|
Contact Tip CuCrZr M6*25*1.0mm |
XL140.0256 |
|
Contact Tip CuCrZr M6*25*1.2mm |
XL140.0390 |
|
Contact Tip E-CU Aluminum M6*25*0.8mm |
XL141.0002 |
|
Contact Tip E-CU Aluminum M6*25*1.0mm |
XL141.0007 |
|
Contact Tip E-CU Aluminum M6*25*1.2mm |
XL141.0011 |
| C |
Tip Holder M6*35 |
XL006.D719 |
| D |
Spacer |
XL767.D607 |
| E |
Blue Steel Liner 0.6-0.8mm 3m |
XL124.0011 |
|
Blue Steel Liner 0.6-0.8mm 4m |
XL124.0012 |
|
Blue Steel Liner 0.6-0.8mm 5m |
XL124.0015 |
|
|
|
| No. |
Description |
Order |
| 1 |
Swan Neck |
XL767.D603 |
| 2 |
Front Handle |
XL180.D078 |
| 3 |
Switch |
XL185.0031S |
| 4 |
Cable Ball Joint & Support Spring Middle |
XL400.1010M |
| 5 |
Power Cable 3m |
XL160.H025 |
|
Power Cable 4m |
XL160.H026 |
|
Power Cable 5m |
XL160.H027 |
| 6 |
Rear Handle & Support Spring |
XL501.2248X |
| 7 |
Rear Connector Nut |
XL500.0213X |
| 8 |
Euro Central Connector KZ-2 |
XL501.0003 |
| 9 |
Liner Positioner Nut M10x1 |
XL501.0082 |
