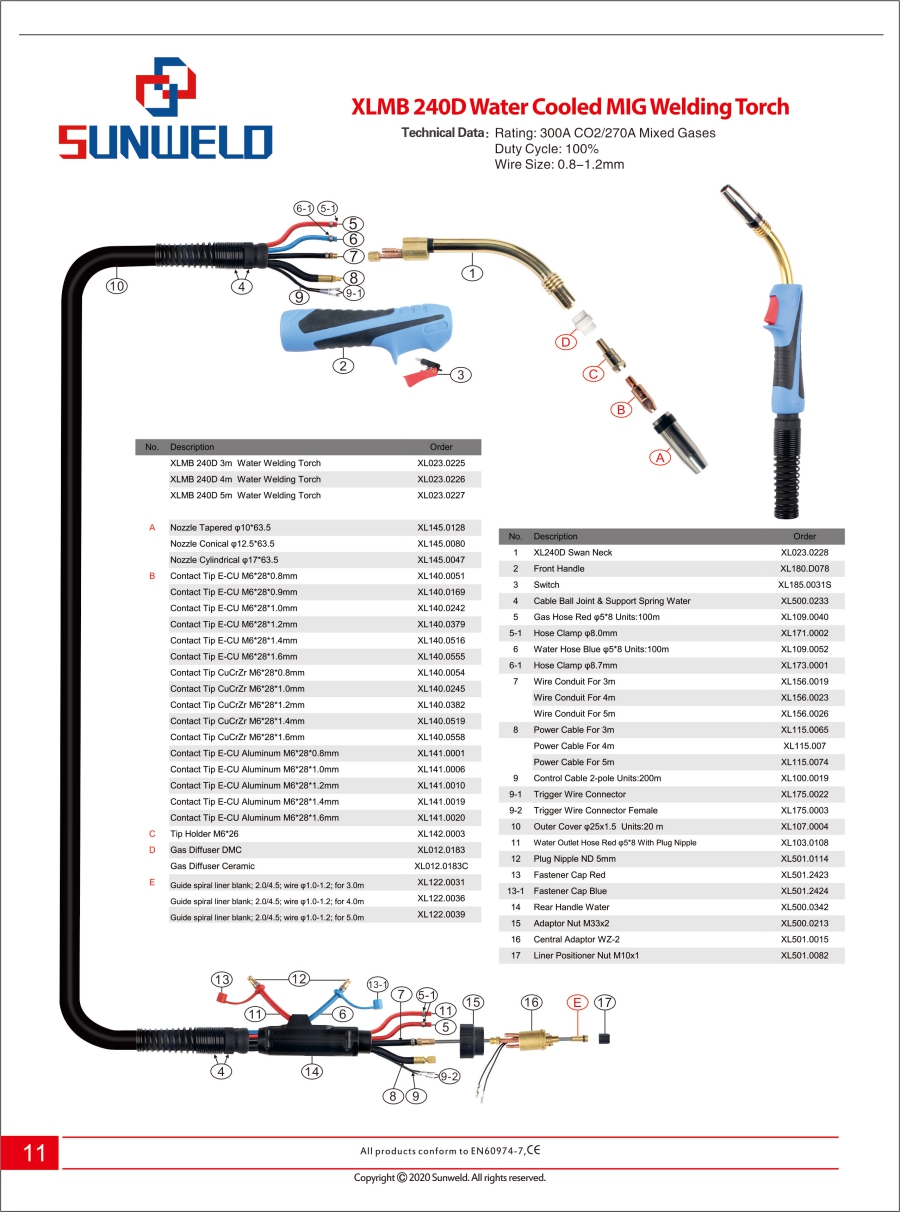

XLMB 240D Water Cooled MIG Welding Torch |
|
| Technical Data： |
Rating: 300A CO2/270A Mixed Gases |
|
|
Duty Cycle: 100% |
|
|
Wire Size: 0.8-1.2mm |
|
| No. |
Description |
Order |
|
XLMB 240D 3m Water Welding Torch |
XL023.0225 |
|
XLMB 240D 4m Water Welding Torch |
XL023.0226 |
|
XLMB 240D 5m Water Welding Torch |
XL023.0227 |
|
|
|
| A |
Nozzle Tapered φ10*63.5 |
XL145.0128 |
|
Nozzle Conical φ12.5*63.5 |
XL145.0080 |
|
Nozzle Cylindrical φ17*63.5 |
XL145.0047 |
| B |
Contact Tip E-CU M6*28*0.8mm |
XL140.0051 |
|
Contact Tip E-CU M6*28*0.9mm |
XL140.0169 |
|
Contact Tip E-CU M6*28*1.0mm |
XL140.0242 |
|
Contact Tip E-CU M6*28*1.2mm |
XL140.0379 |
|
Contact Tip E-CU M6*28*1.4mm |
XL140.0516 |
|
Contact Tip E-CU M6*28*1.6mm |
XL140.0555 |
|
Contact Tip CuCrZr M6*28*0.8mm |
XL140.0054 |
|
Contact Tip CuCrZr M6*28*1.0mm |
XL140.0245 |
|
Contact Tip CuCrZr M6*28*1.2mm |
XL140.0382 |
|
Contact Tip CuCrZr M6*28*1.4mm |
XL140.0519 |
|
Contact Tip CuCrZr M6*28*1.6mm |
XL140.0558 |
|
Contact Tip E-CU Aluminum M6*28*0.8mm |
XL141.0001 |
|
Contact Tip E-CU Aluminum M6*28*1.0mm |
XL141.0006 |
|
Contact Tip E-CU Aluminum M6*28*1.2mm |
XL141.0010 |
|
Contact Tip E-CU Aluminum M6*28*1.4mm |
XL141.0019 |
|
Contact Tip E-CU Aluminum M6*28*1.6mm |
XL141.0020 |
| C |
Tip Holder M6*26 |
XL142.0003 |
| D |
Gas Diffuser DMC |
XL012.0183 |
|
Gas Diffuser Ceramic |
XL012.0183C |
| E |
Guide spiral liner blank; 2.0/4.5; wire φ1.0-1.2; for 3.0m |
XL122.0031 |
|
Guide spiral liner blank; 2.0/4.5; wire φ1.0-1.2; for 4.0m |
XL122.0036 |
|
Guide spiral liner blank; 2.0/4.5; wire φ1.0-1.2; for 5.0m |
XL122.0039 |
|
|
|
| No. |
Description |
Order |
| 1 |
XL240D Swan Neck |
XL023.0228 |
| 2 |
Front Handle |
XL180.D078 |
| 3 |
Switch |
XL185.0031S |
| 4 |
Cable Ball Joint & Support Spring Water |
XL500.0233 |
| 5 |
Gas Hose Red φ5*8 Units:100m |
XL109.0040 |
| 5-1 |
Hose Clamp φ8.0mm |
XL171.0002 |
| 6 |
Water Hose Blue φ5*8 Units:100m |
XL109.0052 |
| 6-1 |
Hose Clamp φ8.7mm |
XL173.0001 |
| 7 |
Wire Conduit For 3m |
XL156.0019 |
|
Wire Conduit For 4m |
XL156.0023 |
|
Wire Conduit For 5m |
XL156.0026 |
| 8 |
Power Cable For 3m |
XL115.0065 |
|
Power Cable For 4m |
XL115.007 |
|
Power Cable For 5m |
XL115.0074 |
| 9 |
Control Cable 2-pole Units:200m |
XL100.0019 |
| 9-1 |
Trigger Wire Connector |
XL175.0022 |
| 9-2 |
Trigger Wire Connector Female |
XL175.0003 |
| 10 |
Outer Cover φ25×1.5 Units:20 m |
XL107.0004 |
| 11 |
Water Outlet Hose Red φ5*8 With Plug Nipple |
XL103.0108 |
| 12 |
Plug Nipple ND 5mm |
XL501.0114 |
| 13 |
Fastener Cap Red |
XL501.2423 |
| 13-1 |
Fastener Cap Blue |
XL501.2424 |
| 14 |
Rear Handle Water |
XL500.0342 |
| 15 |
Adaptor Nut M33x2 |
XL500.0213 |
| 16 |
Central Adaptor WZ-2 |
XL501.0015 |
| 17 |
Liner Positioner Nut M10x1 |
XL501.0082 |
