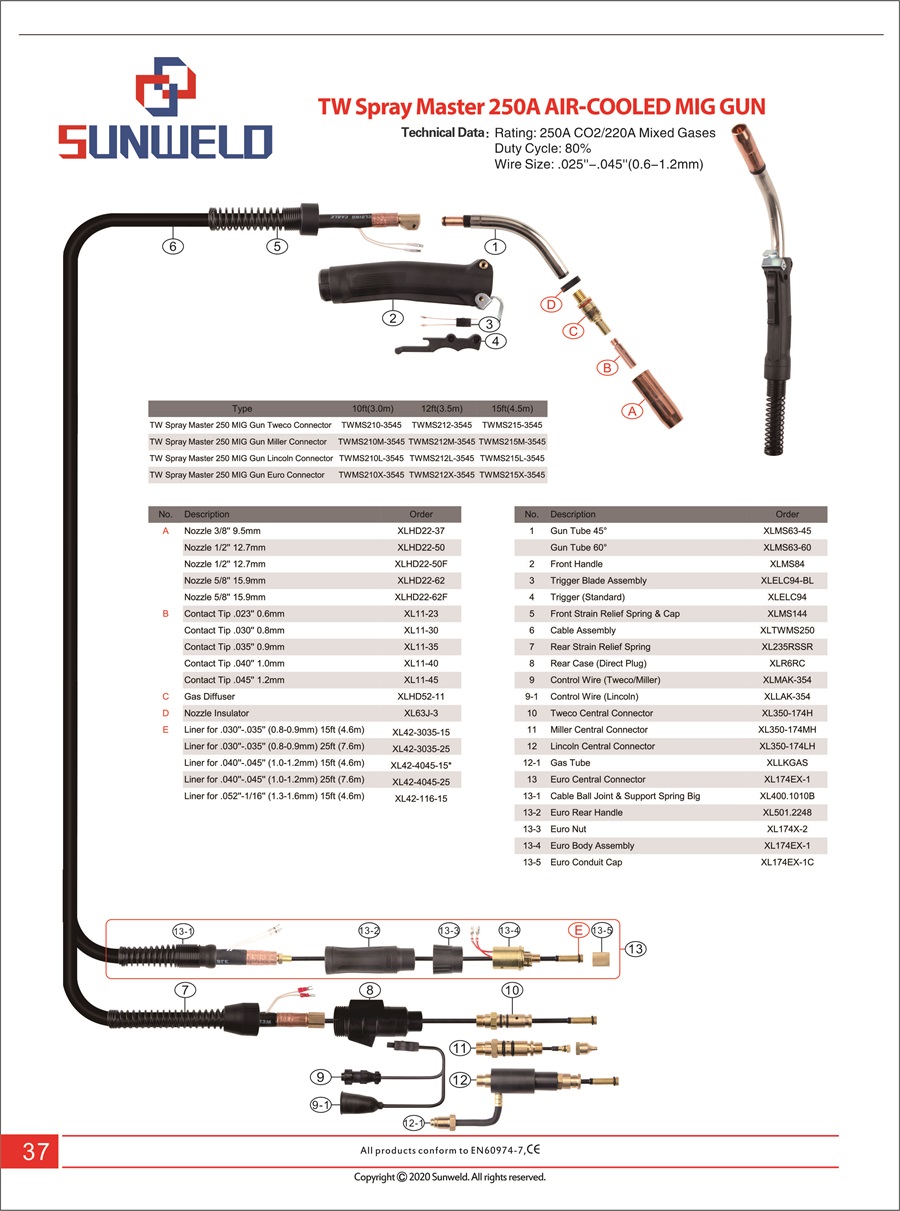

TW Spray Master 250A AIR-COOLED MIG GUN |
|
|
|
Rating: 250A CO2/220A Mixed Gases |
|
|
|
|
Duty Cycle: 80% |
|
|
|
|
Wire Size: .025”-.045”(0.6-1.2mm) |
|
|
|
|
Type |
10ft(3.0m) |
12ft(3.5m) |
15ft(4.5m) |
|
TW Spray Master 250 MIG Gun Tweco Connector |
TWMS210-3545 |
TWMS212-3545 |
TWMS215-3545 |
|
TW Spray Master 250 MIG Gun Miller Connector |
TWMS210M-3545 |
TWMS212M-3545 |
TWMS215M-3545 |
|
TW Spray Master 250 MIG Gun Lincoln Connector |
TWMS210L-3545 |
TWMS212L-3545 |
TWMS215L-3545 |
|
TW Spray Master 250 MIG Gun Euro Connector |
TWMS210X-3545 |
TWMS212X-3545 |
TWMS215X-3545 |
|
|
|
|
|
| No. |
Description |
Order |
|
|
| A |
Nozzle 3/8” 9.5mm |
XLHD22-37 |
|
|
|
Nozzle 1/2” 12.7mm |
XLHD22-50 |
|
|
|
Nozzle 1/2” 12.7mm |
XLHD22-50F |
|
|
|
Nozzle 5/8” 15.9mm |
XLHD22-62 |
|
|
|
Nozzle 5/8” 15.9mm |
XLHD22-62F |
|
|
| B |
Contact Tip .023” 0.6mm |
XL11-23 |
|
|
|
Contact Tip .030” 0.8mm |
XL11-30 |
|
|
|
Contact Tip .035” 0.9mm |
XL11-35 |
|
|
|
Contact Tip .040” 1.0mm |
XL11-40 |
|
|
|
Contact Tip .045” 1.2mm |
XL11-45 |
|
|
| C |
Gas Diffuser |
XLHD52-11 |
|
|
| D |
Nozzle Insulator |
XL63J-3 |
|
|
| E |
Liner for .030”-.035” (0.8-0.9mm) 15ft (4.6m) |
XL42-3035-15 |
|
|
|
Liner for .030”-.035” (0.8-0.9mm) 25ft (7.6m) |
XL42-3035-25 |
|
|
|
Liner for .040”-.045” (1.0-1.2mm) 15ft (4.6m) |
XL42-4045-15* |
|
|
|
Liner for .040”-.045” (1.0-1.2mm) 25ft (7.6m) |
XL42-4045-25 |
|
|
|
Liner for .052”-1/16” (1.3-1.6mm) 15ft (4.6m) |
XL42-116-15 |
|
|
|
|
|
|
|
| No. |
Description |
Order |
|
|
| 1 |
Gun Tube 45° |
XLMS63-45 |
|
|
|
Gun Tube 60° |
XLMS63-60 |
|
|
| 2 |
Front Handle |
XLMS84 |
|
|
| 3 |
Trigger Blade Assembly |
XLELC94-BL |
|
|
| 4 |
Trigger (Standard) |
XLELC94 |
|
|
| 5 |
Front Strain Relief Spring & Cap |
XLMS144 |
|
|
| 6 |
Cable Assembly |
XLTWMS250 |
|
|
| 7 |
Rear Strain Relief Spring |
XL235RSSR |
|
|
| 8 |
Rear Case (Direct Plug) |
XLR6RC |
|
|
| 9 |
Control Wire (Tweco/Miller) |
XLMAK-354 |
|
|
| 9-1 |
Control Wire (Lincoln) |
XLLAK-354 |
|
|
| 10 |
Tweco Central Connector |
XL350-174H |
|
|
| 11 |
Miller Central Connector |
XL350-174MH |
|
|
| 12 |
Lincoln Central Connector |
XL350-174LH |
|
|
| 12-1 |
Gas Tube |
XLLKGAS |
|
|
| 13 |
Euro Central Connector |
XL174EX-1 |
|
|
| 13-1 |
Cable Ball Joint & Support Spring Big |
XL400.1010B |
|
|
| 13-2 |
Euro Rear Handle |
XL501.2248 |
|
|
| 13-3 |
Euro Nut |
XL174X-2 |
|
|
| 13-4 |
Euro Body Assembly |
XL174EX-1 |
|
|
| 13-5 |
Euro Conduit Cap |
XL174EX-1C |
|
|
